Description
Description
Rides XC. And the stuff that scares XC riders.
Top Fuel 8 fuses the lightweight efficiency of a cross country bike with the capability and forgiveness of a trail bike. It's quick, nimble, and dishes out serious fun on flow trails and techy descents alike, with a 120 mm RockShox fork, 115 mm of rear travel and a dropper post for getting low on the rough stuff. This bike is fully capable of shredding singletrack, racing gruelling endurance events and even holds its own on the XC course
It's right for you if...
You’re looking for a do-it-all full suspension mountain bike that balances efficiency with capability. You want to rip rough trails, do a couple XC races, and even test yourself with an endurance or stage race.
The tech you get
A lightweight Alpha Platinum Aluminum frame, 120mm RockShox Recon RL fork with Motion Control damper, 115mm of rear travel with a Fox Performance Float shock, and a 1x12 SRAM NX Eagle drivetrain. Plus, Shimano hydraulic disc brakes, TwistLoc dual remote suspension lockout, Bontrager Line Dropper, and Tubeless Ready Bontrager Kovee Comp 23 wheels.
The final word
Top Fuel 8 is an efficient, capable, and ridiculously fun short-travel full suspension trail bike. It's built to take on technical terrain, flowy XC courses, and the demands of endurance mountain bike races.
Why you'll love it
- This short-travel trail bike gives you a suspension setup that’s capable in several MTB disciplines, and especially suited to endurance events
- TwistLoc simultaneously locks out front and rear shocks for climbs and sprints with the simple Grip Shift-like motion
- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
- You get a Straight Shot down tube for extra stiffness in the rough and Knock Block frame defense to protect against spinning bars and fork crowns
Details & Specs
Terrain | Trail, Mountain, Cross Country | Fork | RockShox Recon Gold RL, Solo Air spring, Motion Control damper, TwistLoc remote, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
Front Wheel | Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel |
Rear Wheel |
Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
|
Rims | Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
Tires | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
Shifter | SRAM NX Eagle, 12-speed |
Crank | SRAM NX Eagle, DUB, 32T steel ring, Boost |
Rear Derailleur |
SRAM NX Eagle |
Cassette | SRAM PG-1230 Eagle, 11-50, 12-speed |
Saddle |
Bontrager Arvada, steel rails, 138 mm width |
Chain |
SRAM NX Eagle, 12-speed |
Seatpost |
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm |
Handlebar | Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
Grips | Bontrager XR Trail Elite, alloy lock-on |
Stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree |
Brake |

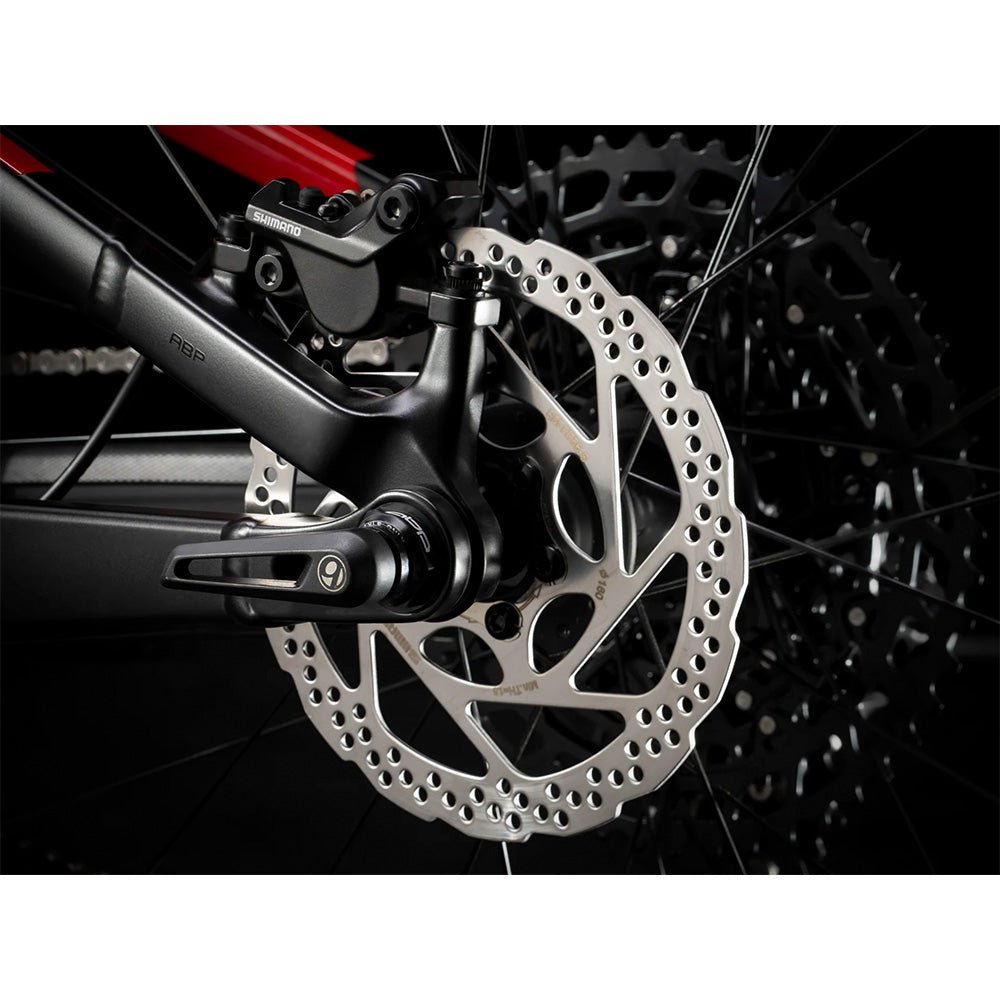

Shimano hydraulic disc, MT501 lever, MT500 caliper |
Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
Shock | Fox Performance Float, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45mm |
Brake Rotor | Shimano RT56, 180mm, 6-bolt |
Suspension Lever |
SRAM TwistLoc dual remote
|
Rear Skewer |
Bontrager Switch thru axle, removable lever | Weight | M - 13.65 kg / 30.09 lbs (with tubes) |
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
