FRAMESET |
|
FRAME |

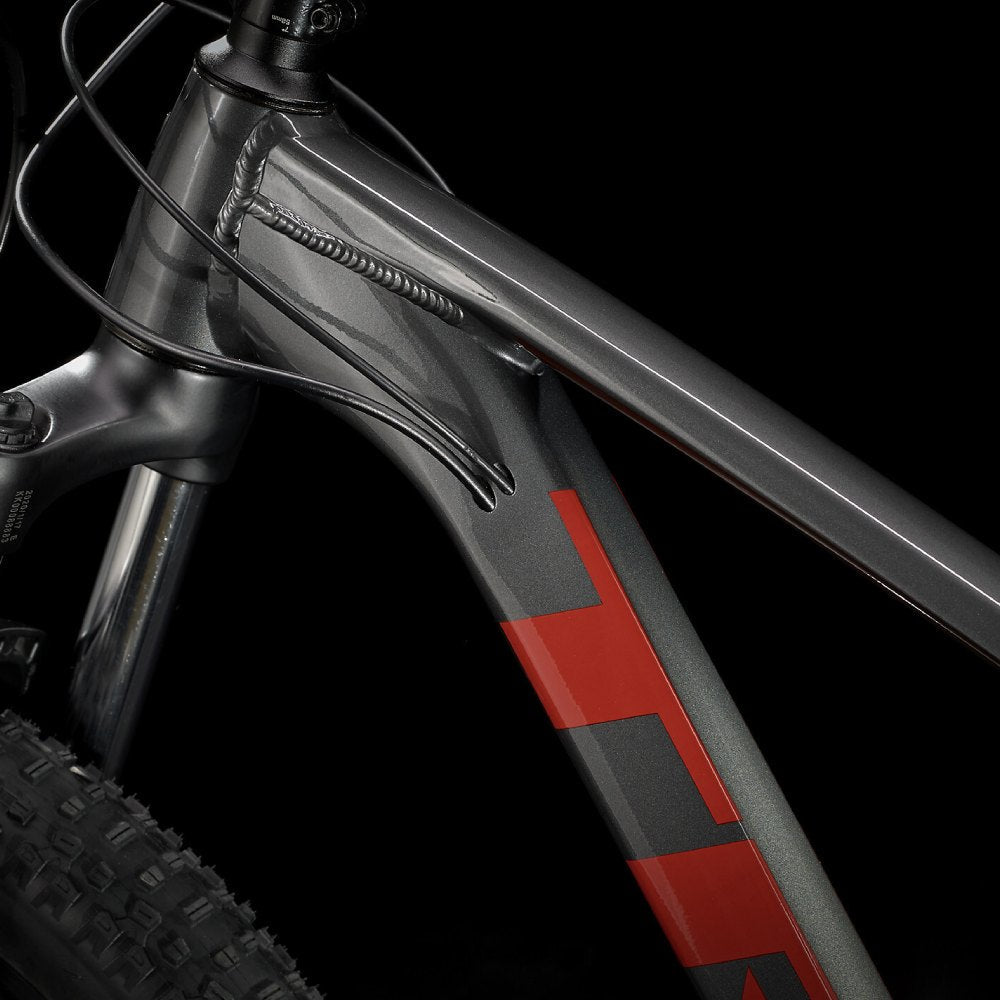

Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR |
FORK |
Size: XS SR Suntour XCM 32, coil spring, preload, lockout, 47mm offset, Boost110, 15mm thru axle, 100mm travel S, M, ML, L, XL SR Suntour XCM 32, coil spring, preload, lockout, 47mm offset, Boost110, 15mm thru axle, 120mm travel
|
|
|
WHEELS |
|
FRONT HUB |
Formula DC-511, 6-bolt, Boost110, 15mm thru axle |
REAR HUB |
Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5mm QR |
TIRES |
Size: XS, S, M, ML, L, XL Bontrager XR3 Comp, wire bead, 30tpi, 29x2.80” Size: S, M, ML, L, XL Kenda Havok, wire bead, 30 tpi, 29x2.80” |
RIM |
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
|
|
DRIVETRAIN |
|
SHIFTERS |
Shimano Deore M4100, 10 speed |

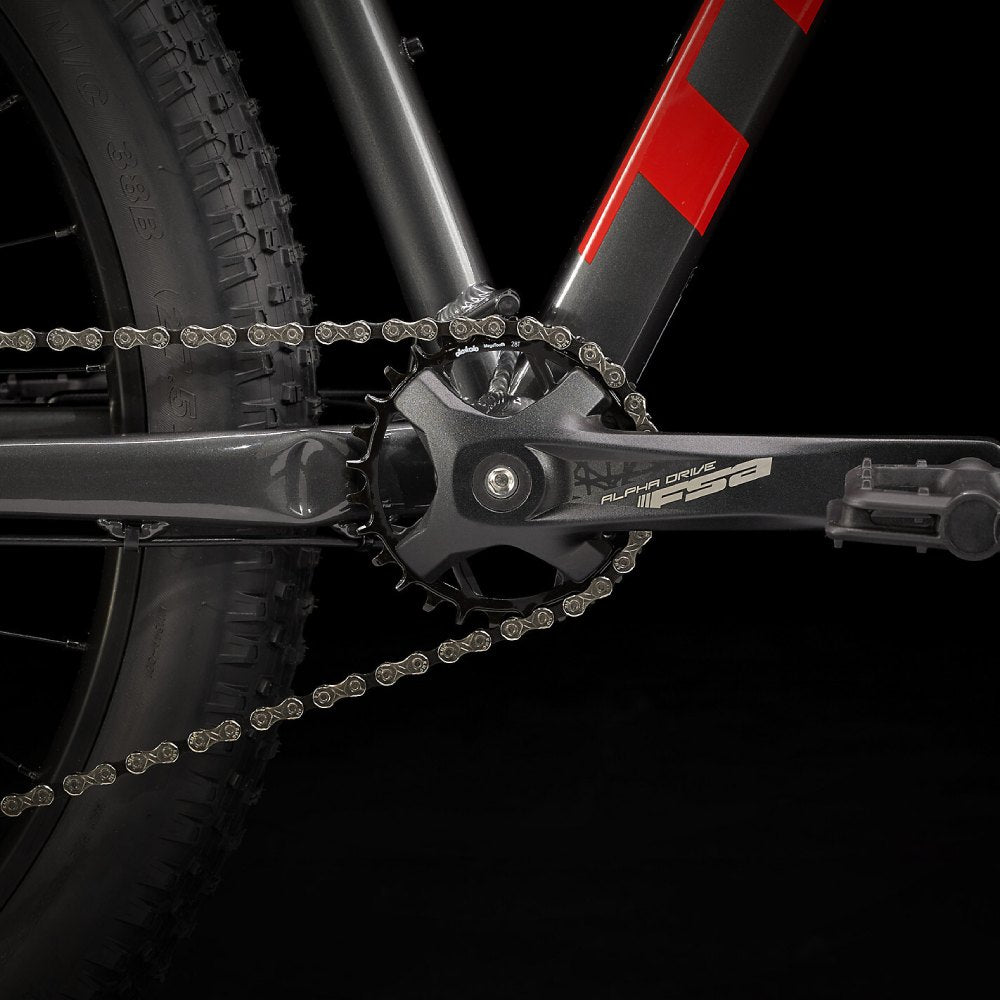

CRANK |
Size: XS, S FSA Alpha Drive, 28T steel ring, Boost, 170mm length Size: M, ML, L, XL FSA Alpha Drive, 28T steel ring, Boost, 175mm length |
BOTTOM BRACKET |
Shimano 7420ST, 73mm, threaded cartridge, 124.5mm spindle |

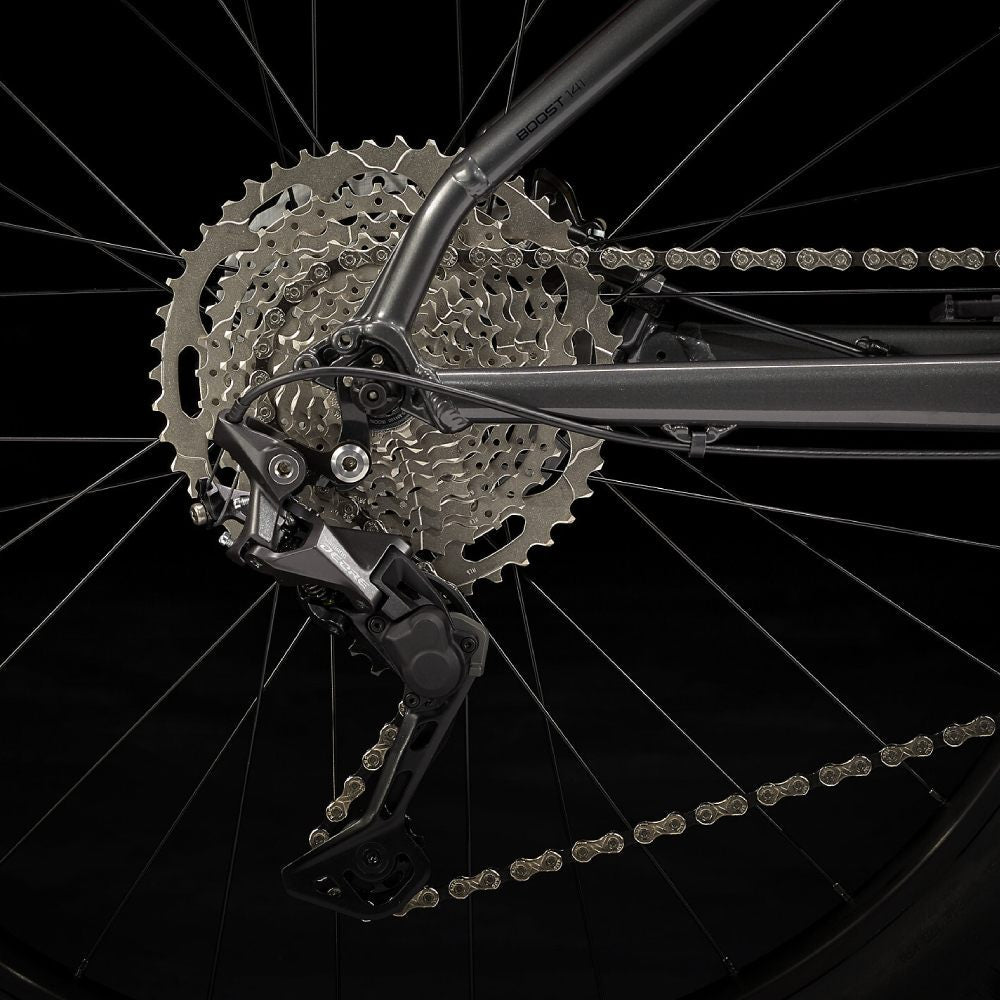

CASSETTE |
Shimano Deore M4100, 11-46, 10 speed |
CHAIN |
KMC X10, 10 speed |
BRAKES |
Shimano MT200 hydraulic disc Brake rotor Shimano RT26, 6-bolt,160 mm,Shimano RT26, 6-bolt,180 mm |
STEM |
Size: XS, S, M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: ML, L, XL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
|
COMPONENTS |
|
SADDLE |
Bontrager Arvada, steel rails, 138 mm width |
SEATPOST |
Size: XS, S, M TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length Size: ML, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
HANDLEBAR |
Size: XS Bontrager alloy, 31.8mm, 15mm rise, 720mm width Size: S, M, ML, L, XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
GRIPS |
Bontrager XR Trial Comp, nylon lock-on |
HEAD SET |
Semi-integrated, cartridge, 1-1/8'' top, 1.5'' bottom |
WEIGHT |
M - 15.41 kg / 33.98 lbs |
|
|
