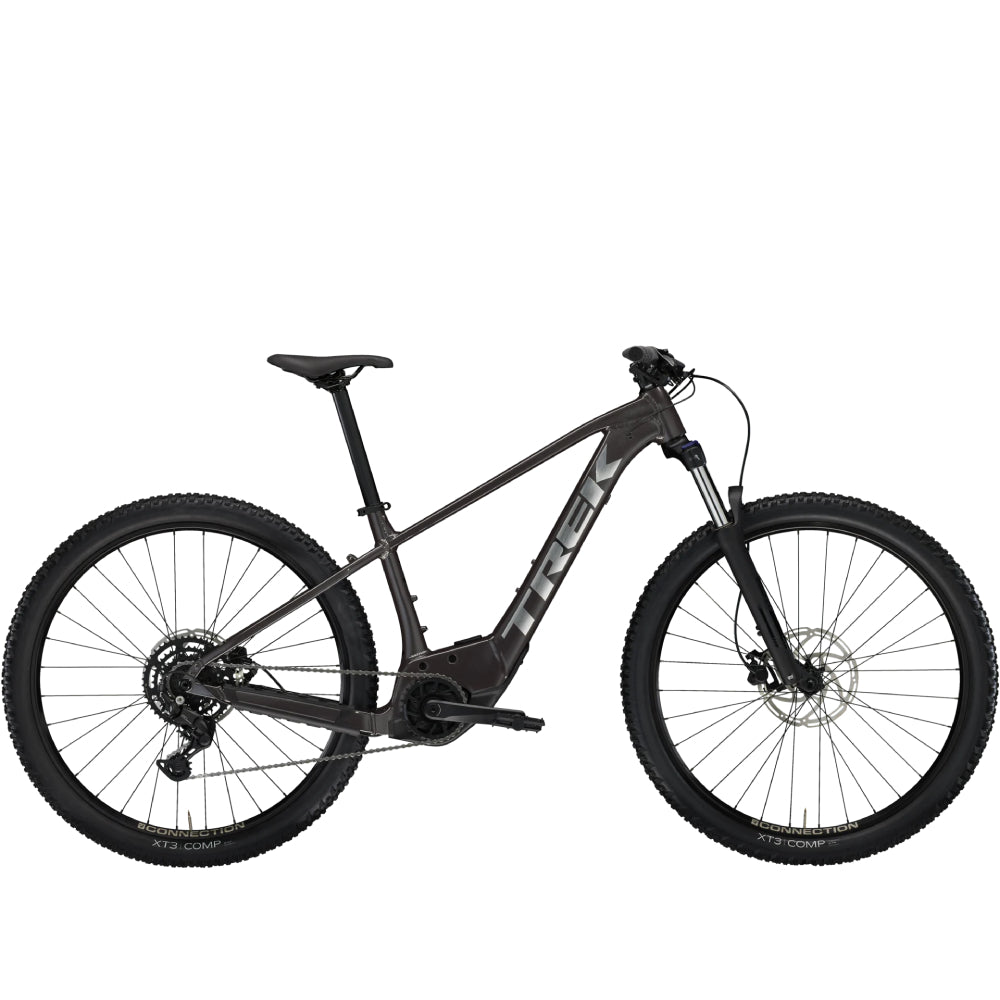

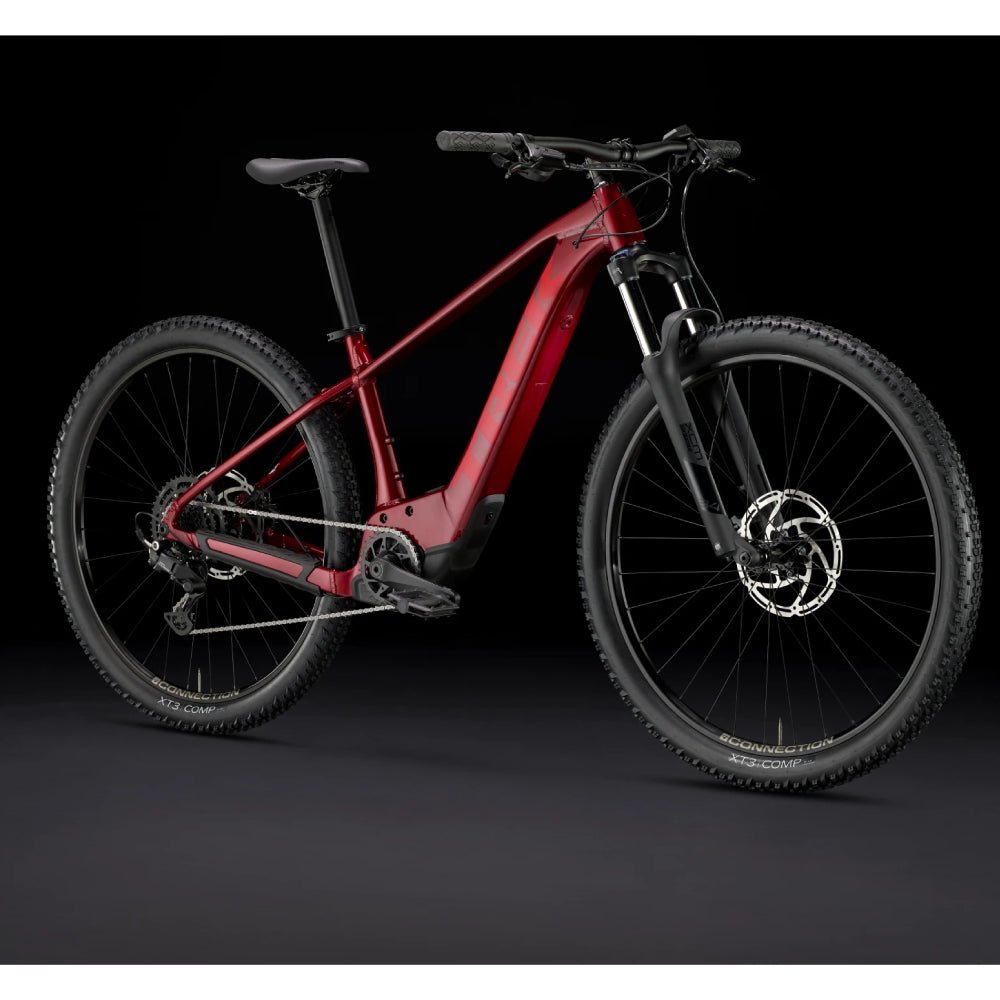

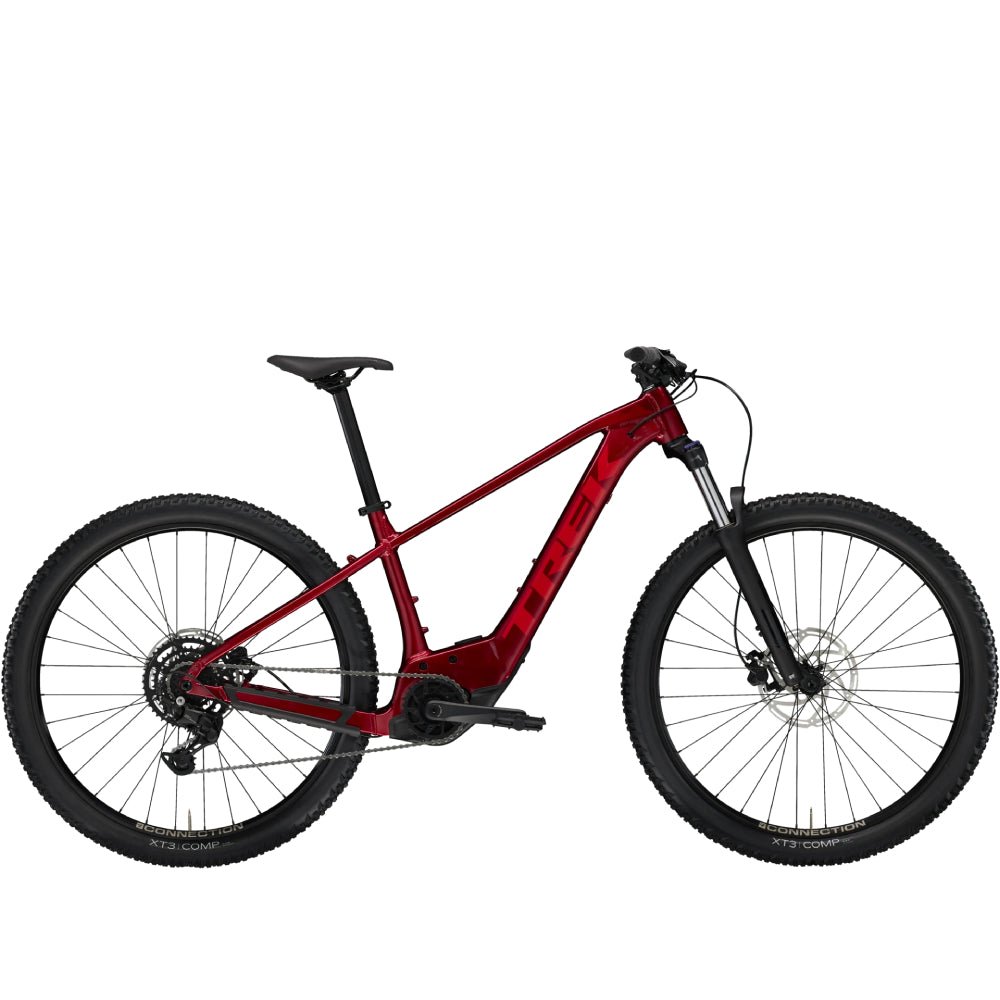

Trek Marlin+ 6 E Bike
Trek Marlin+ 6 E Bike
Regular price
$2,998.99
Sale price
$2,998.99
Regular price
$3,599.99
Unit price
per
16% Off
Couldn't load pickup availability
Trek Marlin+ 6 E Bike
Specs
Specs
Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank.
It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
Jump to Specs → Jump to Features →
Arrive in Style.
Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.
Why you'll love it
- Its AUTO mode adaptive motor support recognizes speed reductions and adjusts assistance automatically
- The 120mm suspension keeps your ride feeling smooth through bumps, roots, and rough stuff
- Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets

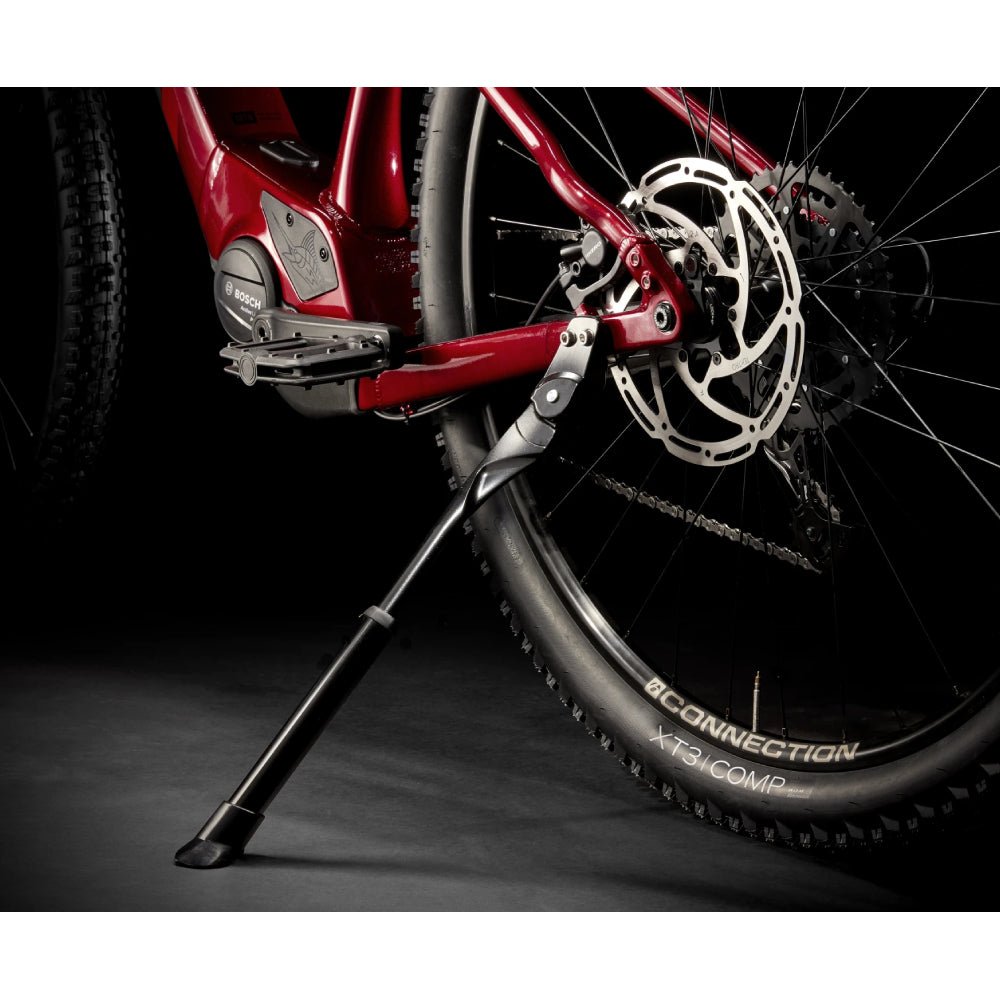

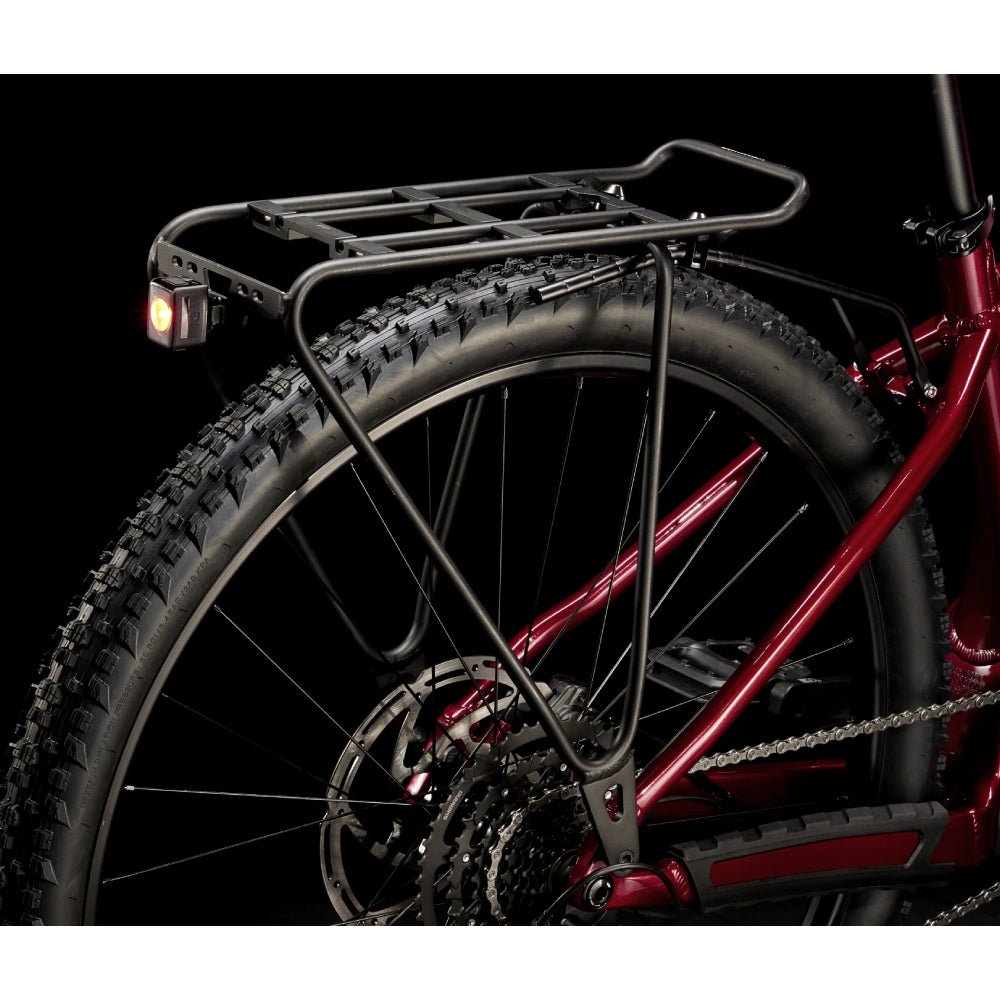

- Tons of rack and fender mounts let you customize your ride for the trail or taking on daily commutes

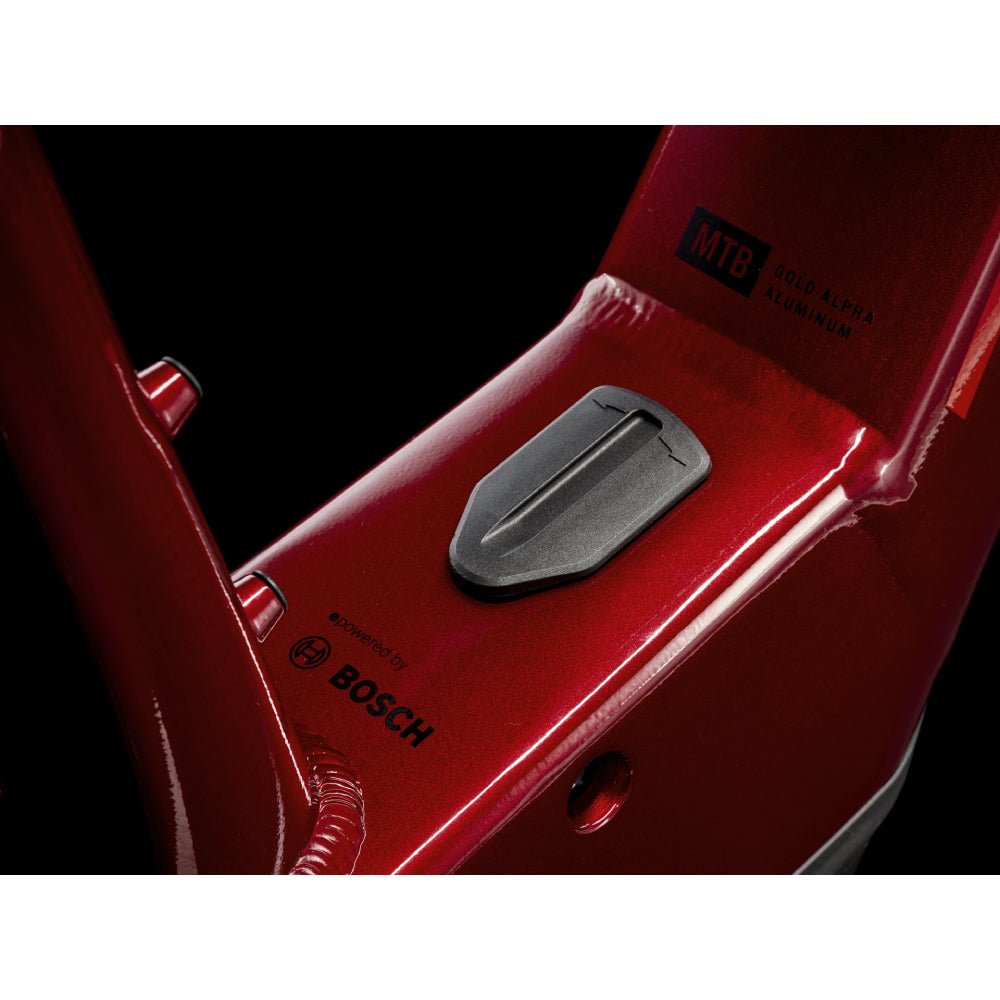

An Alpha Gold Aluminum frame with real mountain bike geometry and a coil-sprung 120mm fork. A reliable Bosch Active Line Plus 50Nm drive system capable of assisting you to speeds of 20mph/32kph. A compact Purion 200 remote with built in display. Plus, hydraulic disc brakes and 9-speed Shimano CUES drivetrain that performs well, even under load.
It's right for you if...
You want a boost of power on the trail without spending an arm and a leg. You love the trail to town capability of Marlin and want a ride that helps you ride a little faster or pedal farther.
SPECS
| FRAMESET | |
| FRAME |

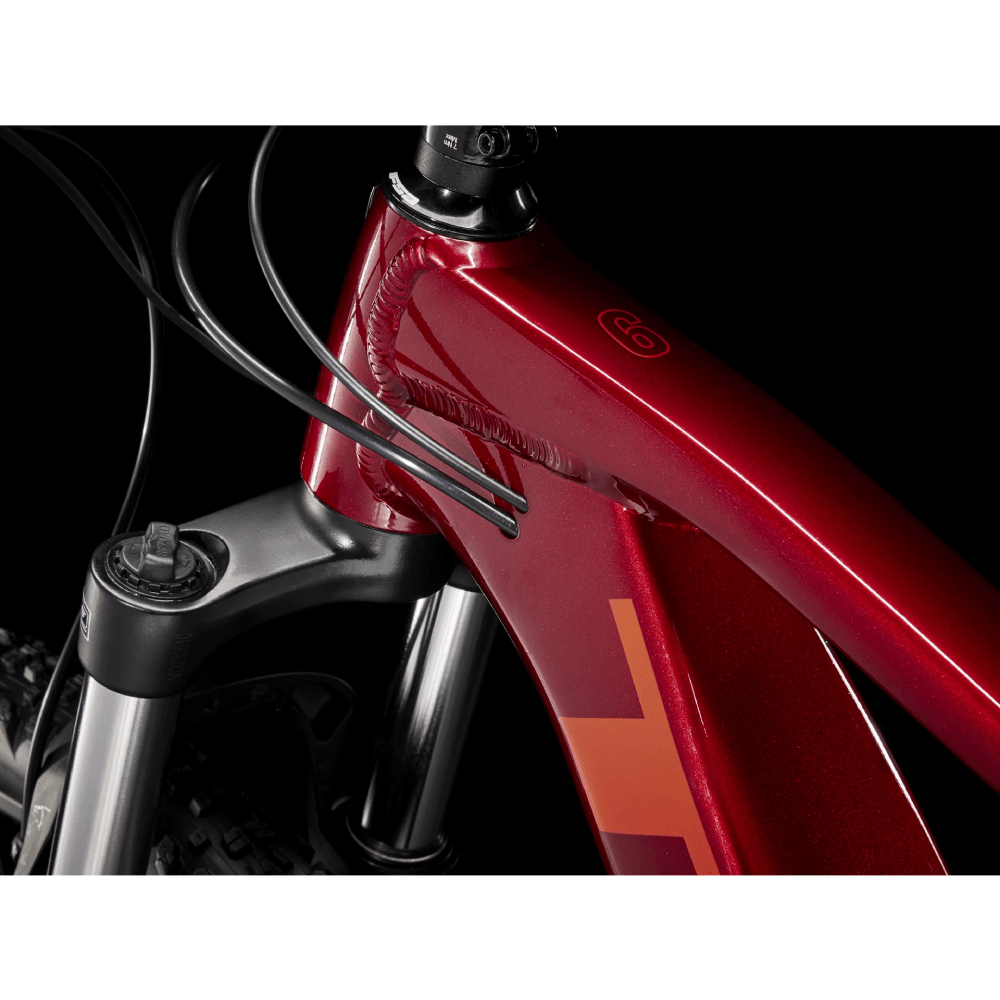

Size: XS Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle Size: S , M , L , XL Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle |
| FORK |

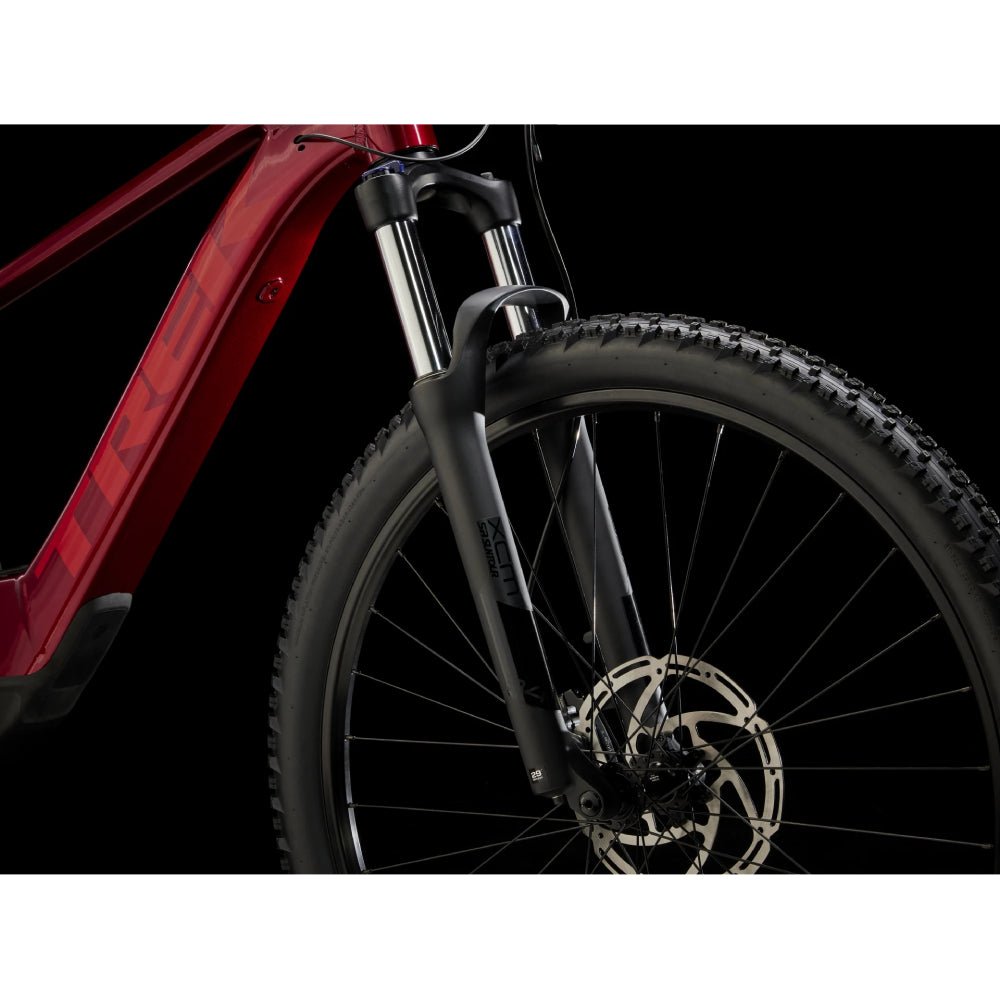

Size: XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44m offset, Boost110, 15mm thru axle, 100mm travel Size: S , M , L , XL SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44m offset, Boost110, 15mm thru axle, 120mm travel |
| WHEELS | |
| HUB FRONT | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| HUB REAR | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| RIM | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| TIRE |
Size: XS, S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" Size: M , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
| DRIVETRAIN | |
| SHIFTER | Shimano U4000, 9 speed |
| REAR DERAILLEUR | Shimano CUES U4000 |
| CHAIN RING | FSA, 32T, steel |
| CRANK |
FSA, 32T, steel |
| CASSETTE | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| CHAIN | Shimano LG500 |
| PEDAL | VP-536 nylon platform |
| MAX CHAINRING SIZE | 1x: 36T, min 32T |
| COMPONENTS | |
| BRAKE ROTOR |
Tektro, centerlock, 203mm |
| ROTOR SIZE | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
| STEM |
Size: XS Bontrager Comp, 31.8mm, 7 degree, 35mm length Size: S , M , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| GRIPS |
Bontrager XR Endurance Comp, lock-on |
| SEATPOST |
Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |

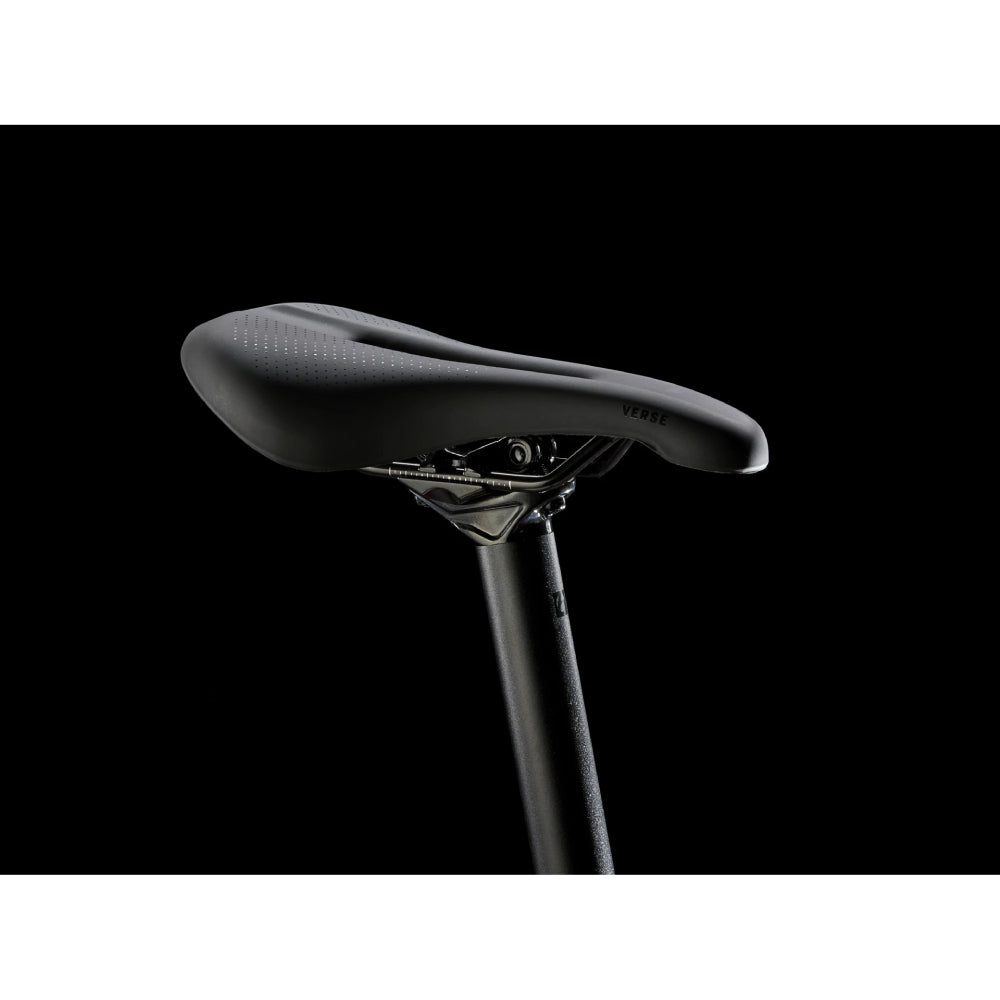

| SADDLE |
Bontrager Verse P3, steel rails |
| WEIGHT | |
| WEIGHT | M - 22.45 kg / 49.5 lbs (with tubes) |
| WEIGHT LIMIT | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| E-SYSTEM | |
| BATTERY | Bosch CompactTube 400Wh |
| CHARGER | Bosch standard 2A, 110V, smart system |
| COMPUTER | Bosch Purion 200 |
| MOTOR | Bosch Active Line Plus, 50 Nm |
FEATURES

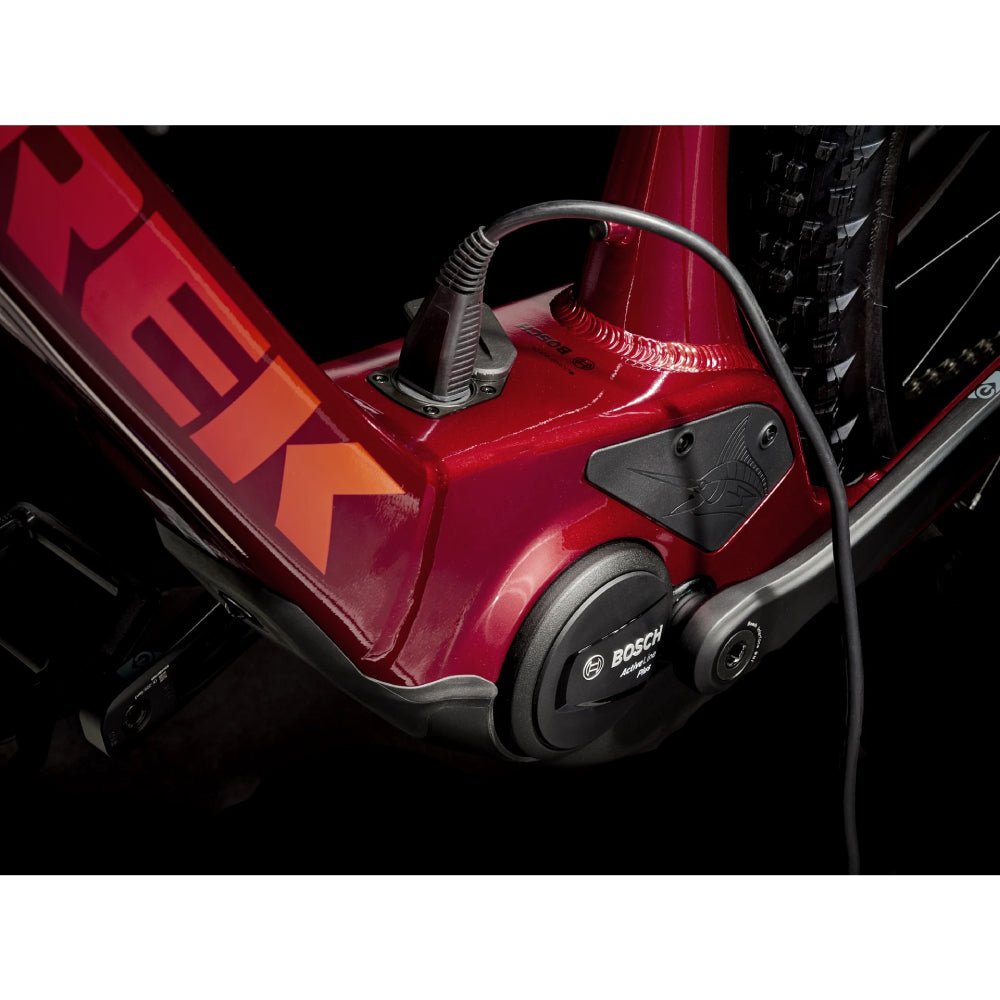

Smooth, quiet support

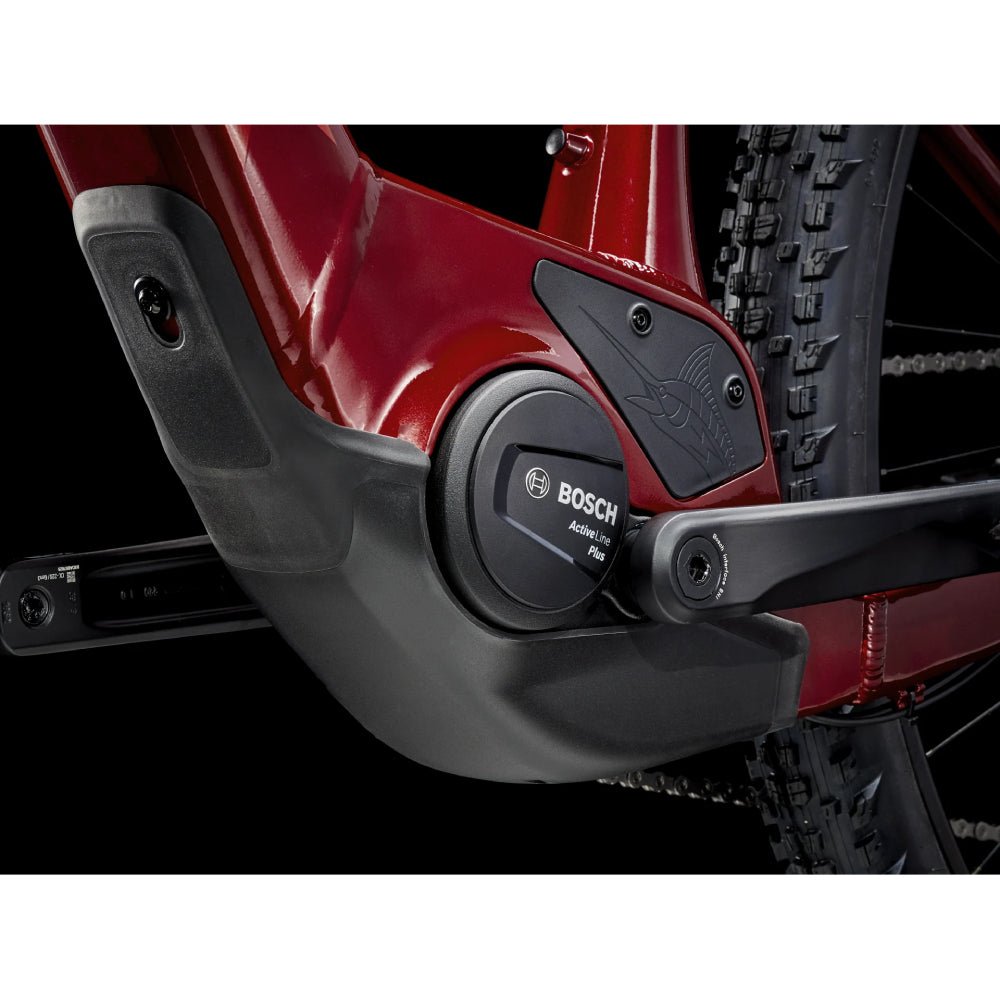

Bosch Active Line Plus mid-power motor doles out a smooth 50Nm of torque. Its controlled acceleration, low pedal resistance, and super quiet operation give you a natural-feeling, unobtrusive ride.

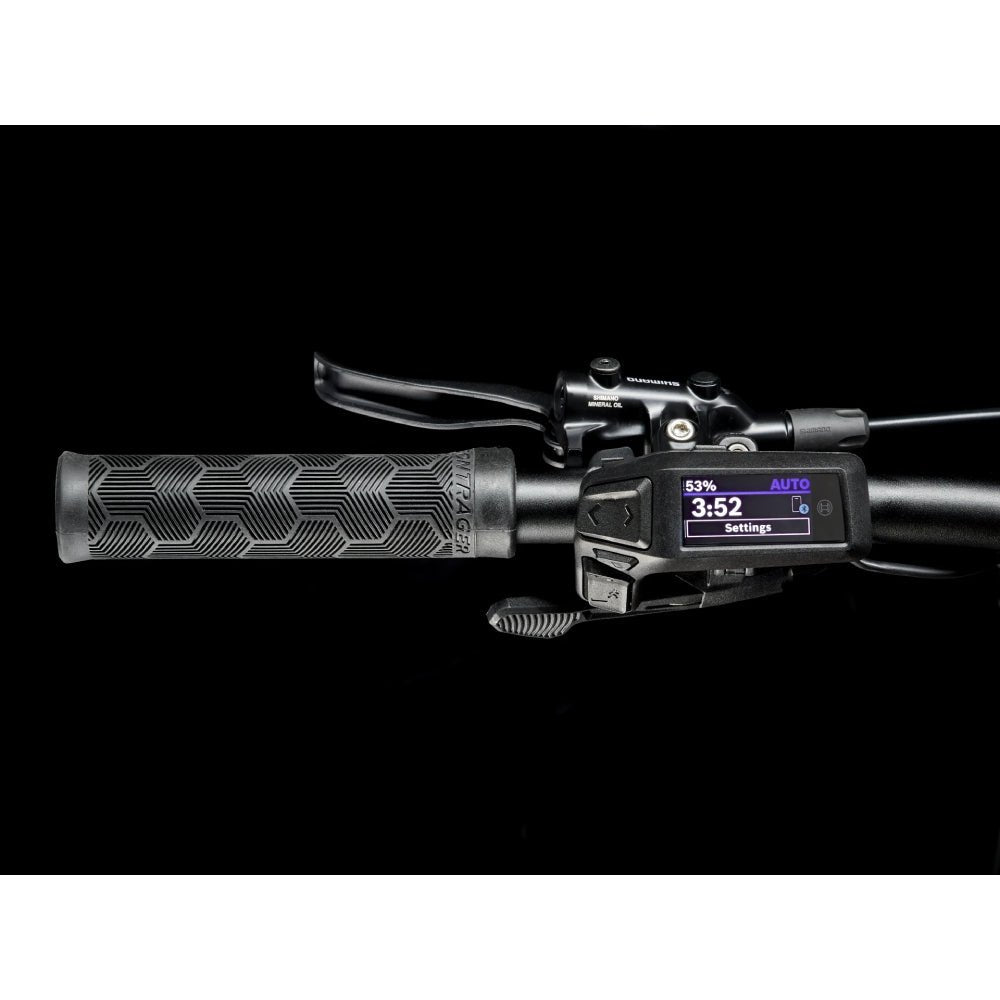

Clean, simple controls
The 2-in-1 remote and display provides all the information and control you'll need in a compact, full-color handlebar controller with intuitive contols.
System safety taken seriously
Trek sets its e-bike safety standards high with UL certified e-systems, sophisticated battery management failsafe systems and battery cells from tier 1 suppliers.

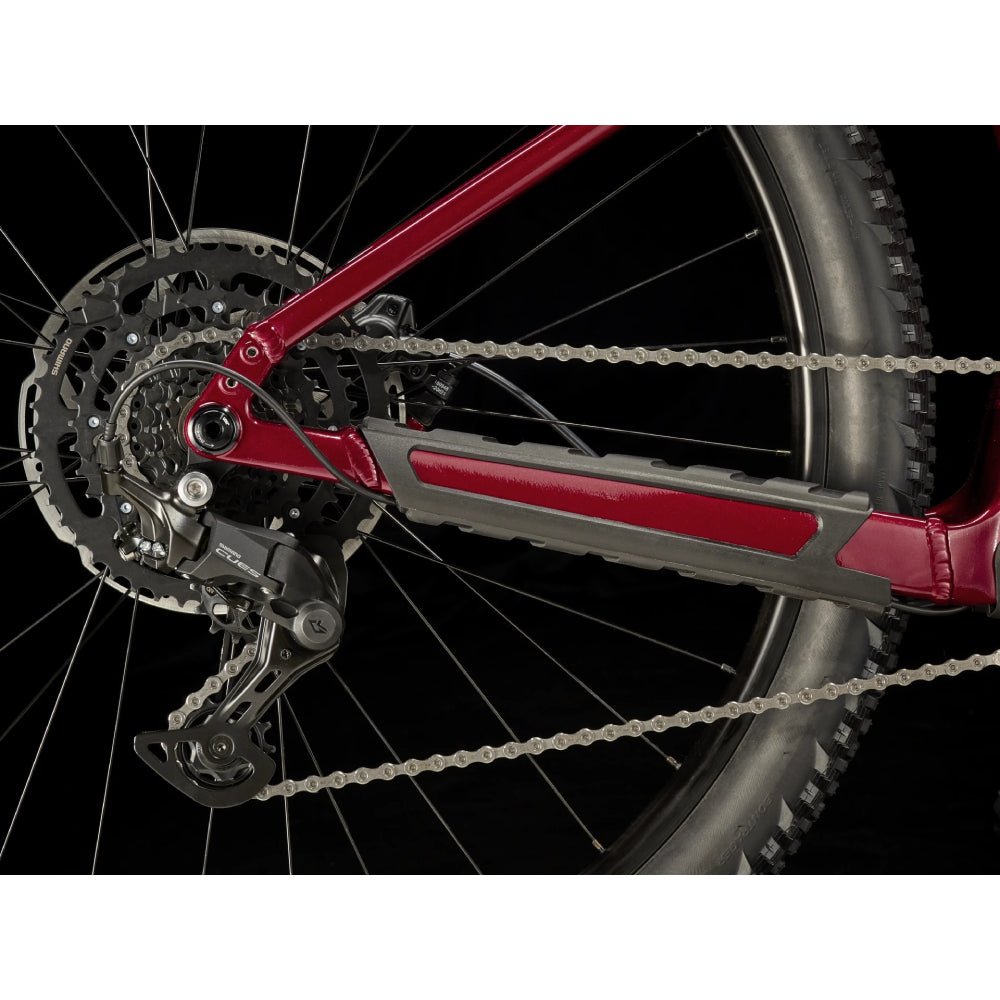

Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
