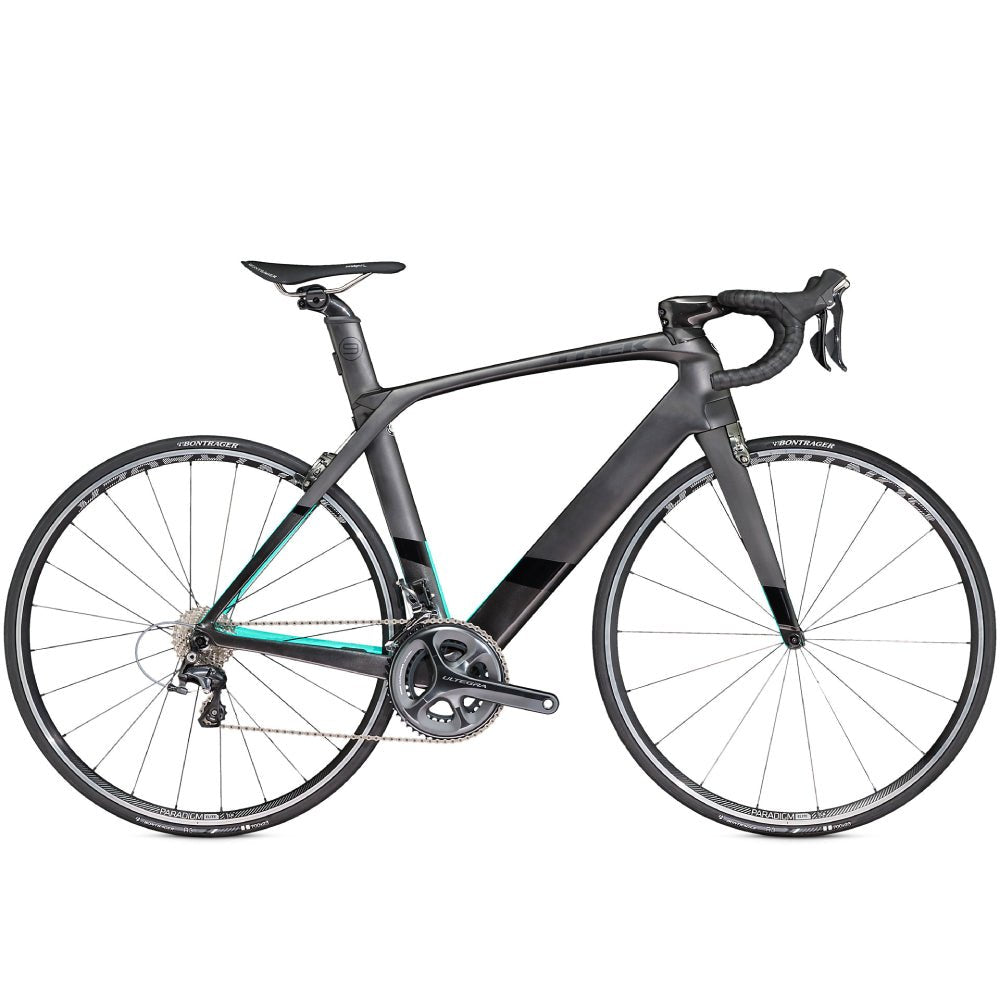

Trek Madone 9.2 C H2 Bike

THE ULTIMATE RACE BIKE

Madone is the ultimate fusion of power, aerodynamics, ride quality, and integration. There are no two ways about it: the first true superbike is a marvel of road bike engineering.

Every detail of Madone is engineered for unprecedented futuristic performance, ride quality, and efficiency, putting every single watt you earn toward demolishing your competition.

KEY FEATURES

• All-new Madone sets a new benchmark for race performance
• IsoSpeed offers the best vertical compliance & aerodynamics
• Every detail is designed for ultimate integration and speed
• Make it yours: completely customizable through Project One

SPECIFICATIONS

FRAMESET

• Frame: 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2, BB90, invisible cable routing, Control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
• Fork: Madone KVF full carbon, carbon E2 asymmetric steerer, carbon dropouts, integrated brake and stem

WHEELS

• Wheels: Bontrager Paradigm Elite Tubeless Ready
• Tires: Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c

DRIVETRAIN

• Shifters: Shimano Ultegra, 11 speed
• Front derailleur: Shimano Ultegra, braze-on
• Rear derailleur: Shimano Ultegra
• Crank: Shimano Ultegra, 50/34 (compact)
• Bottom bracket: BB90
• Cassette: Shimano Ultegra, 11-28, 11 speed
• Chain: Shimano Ultegra

COMPONENTS

• Saddle: Bontrager Paradigm RL, hollow titanium rails
• Seatpost: Madone micro-adjust carbon seatmast cap, 25mm offset
• Handlebar: Madone XXX Integrated Bar/Stem, KVF profile, Invisible cable routing, OCLV carbon, VR-CF
• Stem: Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/Blendr computer & light mounts
• Headset: Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
• Brakeset: Madone aero, integrated, direct mount

WEIGHT

• Weight: 56cm - 7.42 kg
