Trek Fuel EX 8 Gen 7 Bike

Trek Fuel EX 8 Gen 7 Bike

Regular price $5,299.99
Sale price $5,299.99 Regular price $5,299.99

Lowest Price Guarantee

Details
Color: Lithium Grey Black Splatter
Size: M

Please note: In Store Pickup Only

60 Day Returns Details
Talk to a human: Call or Chat
View full details

Trek Fuel EX 8 Gen 7 Bike

Product Details

Trek Fuel EX 8 Gen 7 Bike

Fuel EX 8 is a confident and versatile trail bike built to get after it.

It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145mm/150mm travel (rear, front), alloy Bontrager Line wheels, and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a dime.

Tech Features

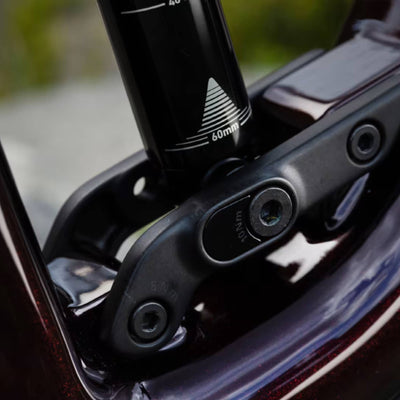

  • Adjustable Leverage Rate

    Tweak your leverage rate with the flip of a chip. Go less progressive for a plusher feel when you’re deep in the travel or more progressive for big features, more bottom out resistance, or running a coil shock.

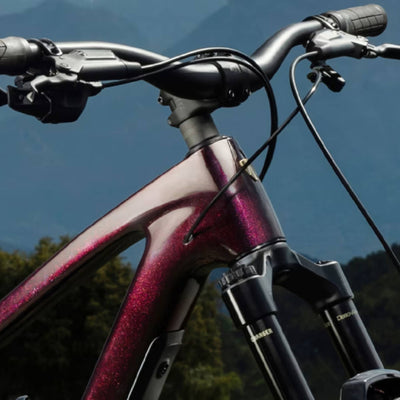

  • Zero Stack Integrated Headset

    New zero stack standard headset, allows for more aftermarket options, like angle-adjust headsets or tricked-out colors.

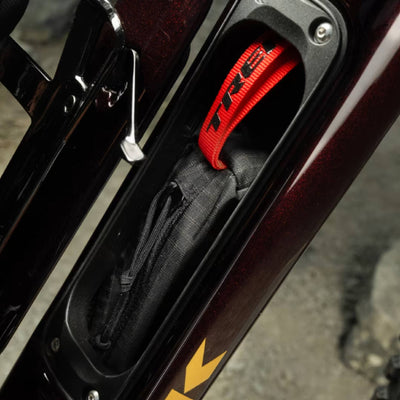

  • Storage and Accessory Mounts

    Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.

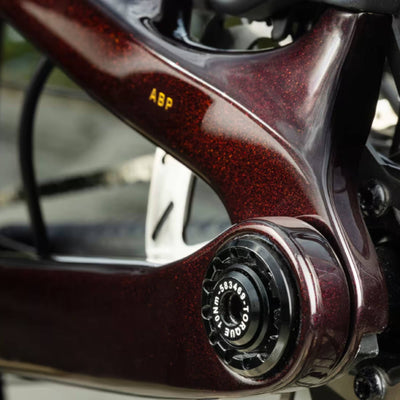

  • Active Braking Pivot

    Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

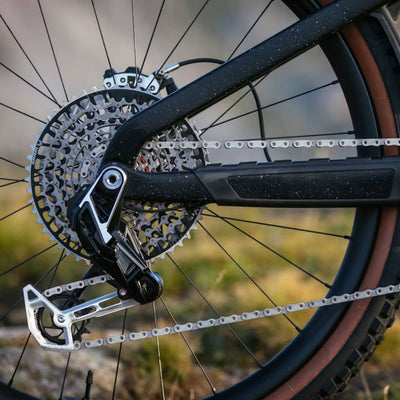

  • Transition to Transmission

    SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner looking, it's also more precise under load, and easier to set up.

Specs

FRAMESET
FRAME Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
FORK Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
SHOCK Fox Performance Float X, 2-position damper, 205mm x 60mm

WHEELS
HUB FRONT Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
HUB REAR Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
SKEWER REAR Bontrager Switch thru axle, removable lever
RIM Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
TIRE Size: S - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, M, L, XL - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
TIRE PART Bontrager TLR sealant, 180 ml/6 oz
RIM STRIP Bontrager TLR
MAX TIRE SIZE Frame: 29x2.50", Fork: See manufacturer

DRIVETRAIN
SHIFTER SRAM Eagle 70, 12 speed
REAR DERAILLEUR SRAM Eagle 70, T-Type
CRANK SRAM Eagle 70, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
BOTTOM BRACKET SRAM DUB MTB Wide, 73mm, BSA threaded
CASSETTE SRAM Eagle XS-1270, T-Type,10-52, 12 speed
CHAIN SRAM Eagle 70, T-Type, 12 speed
MAX CHAINRING SIZE 1x: 34T round, 32T oval, min 30T, 32T oval

COMPONENTS
SADDLE Bontrager Verse P3, chromoly rails
*SEATPOST Size: S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: M - Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size: L, XL - Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
HANDLEBAR Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
GRIPS Trek Line Comp, nylon lock-on
STEM Bontrager Elite, 35mm, 0 degree, 45mm length
HEADSET FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
BRAKE SRAM DB 8 4-piston hydraulic disc
*BRAKE ROTOR Size: S, M, L, XL - SRAM Centerline 2.0, 6-bolt, 200mm
Size: S, M, L, XL - SRAM Centerline 2.0, 6-bolt, 180mm
ROTOR SIZE Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

WEIGHT
WEIGHT M - 16.89 kg / 37.24 lbs (with TLR sealant, no tubes)
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
⚠️
Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
