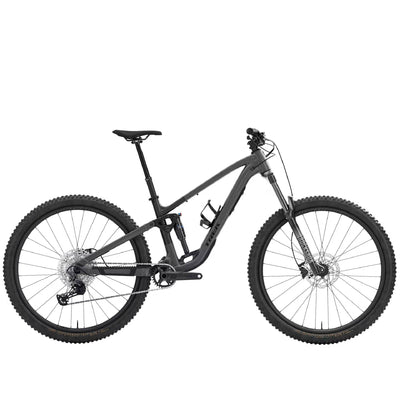

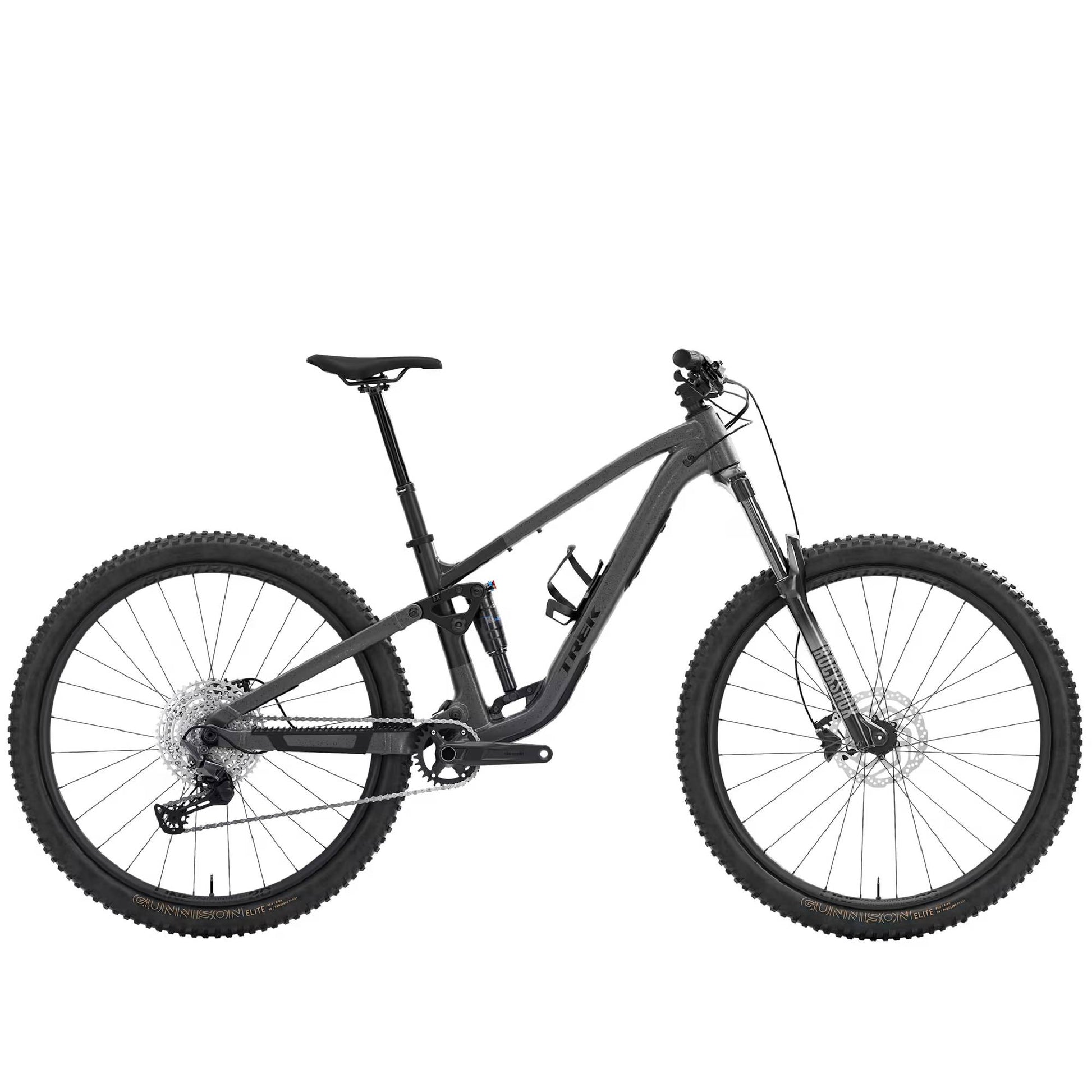

Trek Fuel EX 5 Gen 7 Bike

Trek Fuel EX 5 Gen 7 Bike

$3,499.99
$3,499.99 $3,499.99

Lowest Price Guarantee

Details
See Reviews
Color: Lithium Grey Black Splatter
Size: M

Please note: In Store Pickup Only
60 Day Returns Details
Talk to a human: Call or Chat

Quick Overview

Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything. Read More
All specs
View full details

Trek Fuel EX 5 Gen 7 Bike

Product Details

Trek Fuel EX 5 Gen 7 Bike

Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.

Tech Features

  • Adjustable Leverage Rate

    Tweak your leverage rate with the flip of a chip. Go less progressive for a plusher feel when you’re deep in the travel or more progressive for big features, more bottom out resistance, or running a coil shock.

  • Zero Stack Integrated Headset

    New zero stack standard headset, allows for more aftermarket options, like angle-adjust headsets or tricked-out colors.

  • Storage and Accessory Mounts

    Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.

  • Active Braking Pivot

    Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

  • Transition to Transmission

    SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner looking, it's also more precise under load, and easier to set up.

Specs

FRAME Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
FORK Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel
SHOCK X-Fusion Pro 2, 2-position damper, 205mm x 60mm

HUB FRONT Shimano TC500 alloy, centerlock, 110x15mm thru axle
HUB REAR Shimano TC500 alloy, centerlock, 148x12mm thru axle
SKEWER REAR Bontrager Switch thru axle, removable lever
RIM Size: S, M, L, XL - Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
Size: S, M, L, XL - Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
TIRE Size: S - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Size: S, M, L, XL - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
TIRE PART Bontrager TLR sealant, 180 ml/6 oz
RIM STRIP Bontrager TLR
MAX TIRE SIZE Frame: 29x2.50", Fork: See manufacturer

SHIFTER Shimano Deore M6100, 12 speed
REAR DERAILLEUR Shimano Deore M6100, long cage
CRANK Shimano MT512, 30T ring, 55mm chainline, 170mm length
BOTTOM BRACKET Shimano BB-MT501 BSA
CASSETTE Shimano Deore M6100, 10-51, 12 speed
CHAIN Shimano Deore M6100, 12 speed
MAX CHAINRING SIZE 1x: 34T round, 32T oval, min 30T, 32T oval
⚠️
Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
