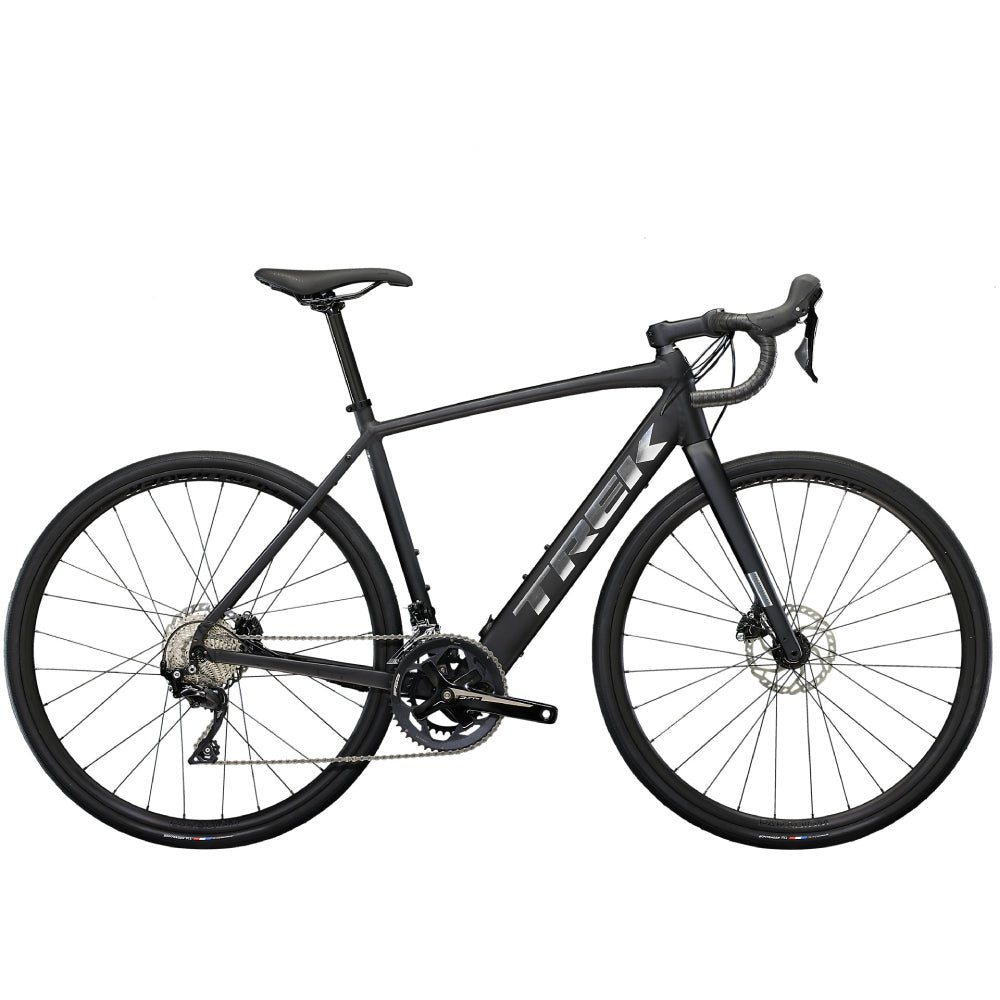

Trek Domane + AL 5 Bike
Trek Domane + AL 5 Bike
Regular price
$4,299.99
Sale price
$4,299.99
Regular price
$4,499.99
Unit price
per
4% Off
Couldn't load pickup availability
| Weight | 20.5 kg |
Trek Domane + AL 5 Bike
Specs
Specs
Give yourself a well-deserved boost.
Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.
It's right for you if...
-
You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides. Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.
SPECS
| FRAMESET | |
| Frame | 100 Series Alpha Aluminum
hub drive system tapered head tube internal routing flat mount disc rack and fender mounts |
| Fork | Domane+ carbon
tapered alloy steerer internal brake routing fender mounts flat mount disc 12x100mm thru axle |
| Frame Fit | Endurance |
| WHEELS | |
| Hub Front | Formula RX-812 alloy
sealed bearing 6-bolt 100x12mm thru axle |
| Skewer Front | Bontrager Switch thru axle
removable lever |
| Hub Rear | Hyena hub drive motor
40Nm 250W |
| Rims | Bontrager Paradigm
Tubeless Ready 28-hole 21 mm width Presta valve |
| Tire | Bontrager R1 Hard-Case Lite
wire bead 60 tpi 700x32c |
Max tire size | 38c without fenders
32c with fenders |
| DRIVETRAIN | |
| Shifter | Size: 49, 52: Shimano 105 R7025, short-reach lever, 11 speed
Size: 54, 56, 58, 61: Shimano 105 R7020, 11 speed |
| Front derailleur | Shimano 105 R7000
31.8mm clamp |
| Rear derailleur | Shimano 105 R7000
long cage 34T max cog |
| Crank | FSA Vero Pro
50/34 |
| Bottom bracket | Torque sensor
threaded 110mm spindle |
| Cassette | Shimano 105 HG700-11
11-34 11 speed |
| Chain | Shimano HG601 |
| Max chainring size | 2x: 50/34 |
| COMPONENTS | |
| Saddle | Bontrager Verse Short Comp
steel rails |
| Seatpost | Bontrager carbon
27.2mm 8mm offset 330mm length |
| Handlebar | Bontrager Elite IsoZone VR-SF
alloy 31.8mm internal Di2 routing 75mm reach 128mm drop |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Bontrager Elite
31.8 mm Blendr-compatible 7-degree |
| Headset | FSA Integrated
sealed cartridge bearing 1-1/8'' top 1.5'' bottom |
| Brake | Shimano 105 hydraulic disc
BR-R7170 flat mount caliper resin pad w/fin |
| Brake rotor | Shimano RT66
6-bolt 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| ACCESSORIES | |
| Battery | 250Wh |
| Charger | 2A
42V output 100V-240V AC input |
| Weight | Weight limit | Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
TECHNOLOGY
Plug-and-play Range Extender battery
Double your range with a 250Wh plug-and-play Range Extender battery that sits in your bottle cage
Endurance Geometry
The stable Endurance Geometry delivers comfort and confidence.
Top Tube Display with Battery Levels
A natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 32 km/h with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display.
