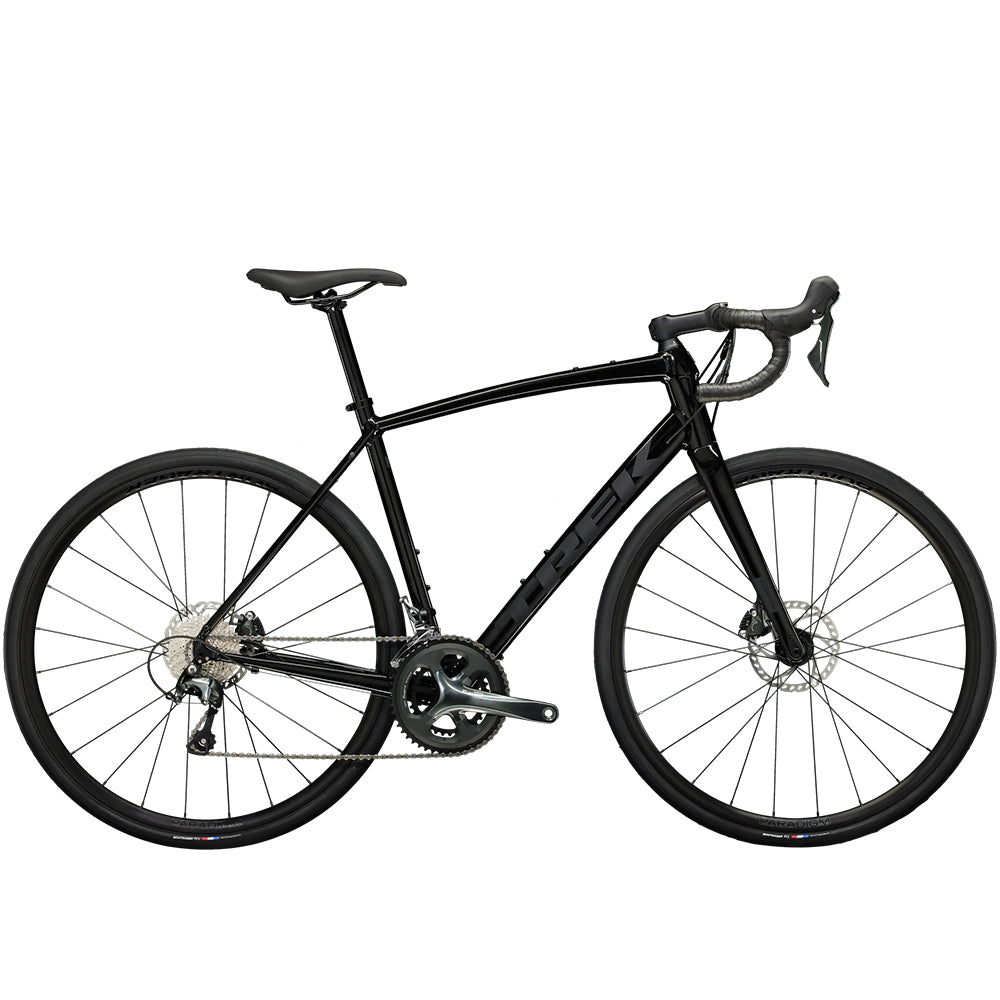

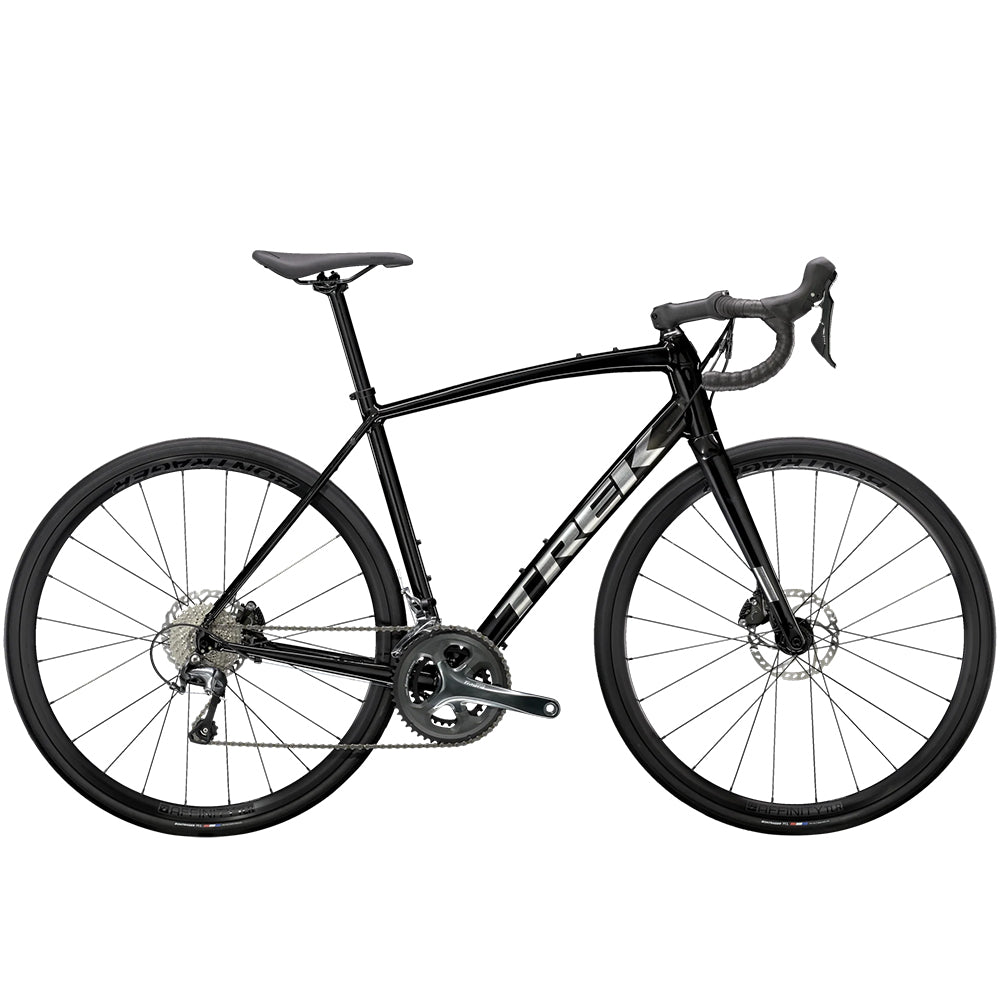

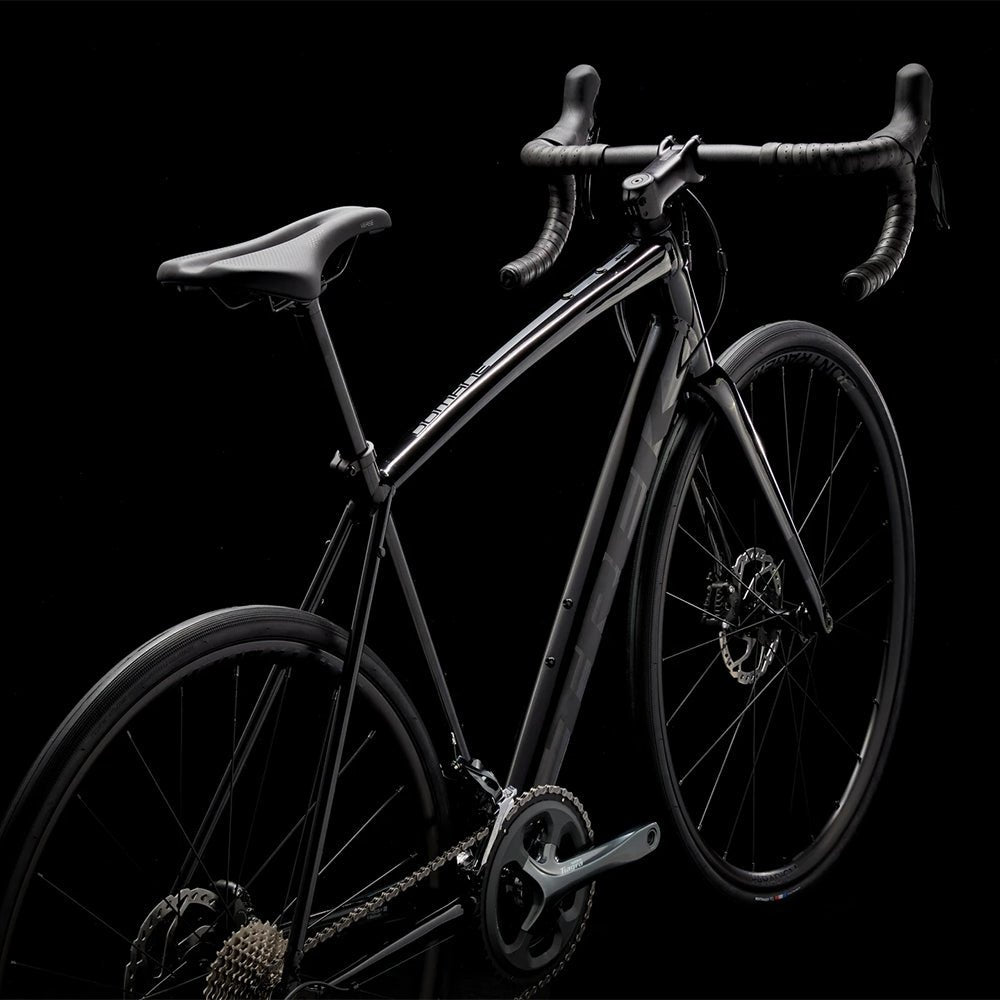

Trek Domane AL 4 Disc Bike

  • IN STORE PICKUP
  • New 2021

Gloss Black Matte Black

Size: 52

$2,199.99
  • Selling Fast.
In Stock Alert

Available Sizes For: Gloss Black Matte Black

Mississauga 52 54 56 58
Collingwood 52 54 56 58
Toronto 52 54 56 58
Distribution Centre 52 54 56 58
Marketplace 52 54 56 58
Bike Lights on Sale
Shop Bike Lights on Sale
Shop
Bottle Cages
Shop Bottle Cages
Shop

Only a few left

Similar Items

Description

Miles and Miles of Fun.

Domane AL 4 Disc combines the smooth, comfortable qualities of an advanced alloy frame with the performance of higher-quality parts. It features an upgraded drivetrain and crisp hydraulic disc brakes for a fast road bike perfect for competitive group rides and even races.

Why you'll love it

  • A light, comfortable frame and quality parts make it an awesome platform for long, fast group rides

  • Hydraulic disc brakes give you more precise and consistent stopping power in any conditions

  • Bigger tire clearance lets you run wider tires for more traction and stability on rail trails and other light gravel roads

SPECS

FRAMESET

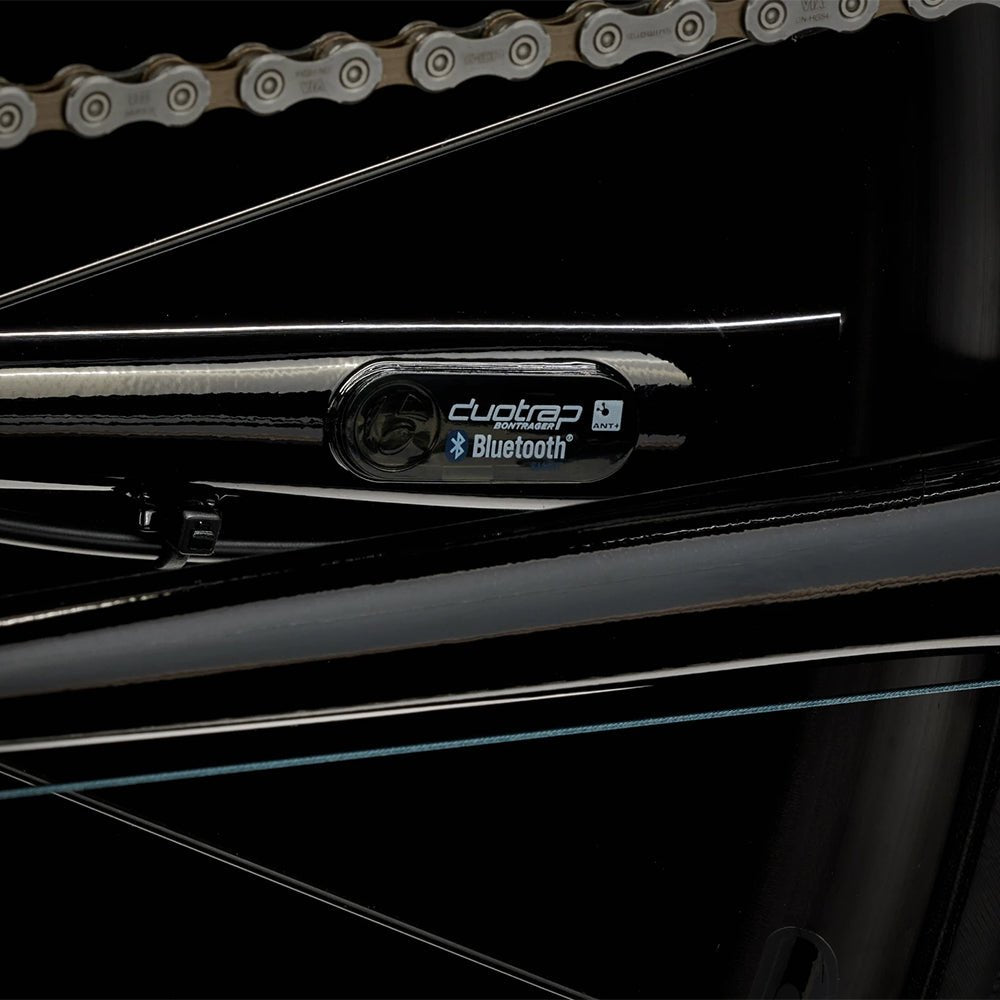

FRAME 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
FORK Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
FRAME FIT Endurance

WHEELS
HUB FRONT Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
HUB REAR Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
SKEWER FRONT Bontrager Switch thru axle, removable lever
SKEWER REAR Bontrager Switch thru-axle, removable lever
RIM Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
SPOKES 14 g stainless steel
TIRE Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c

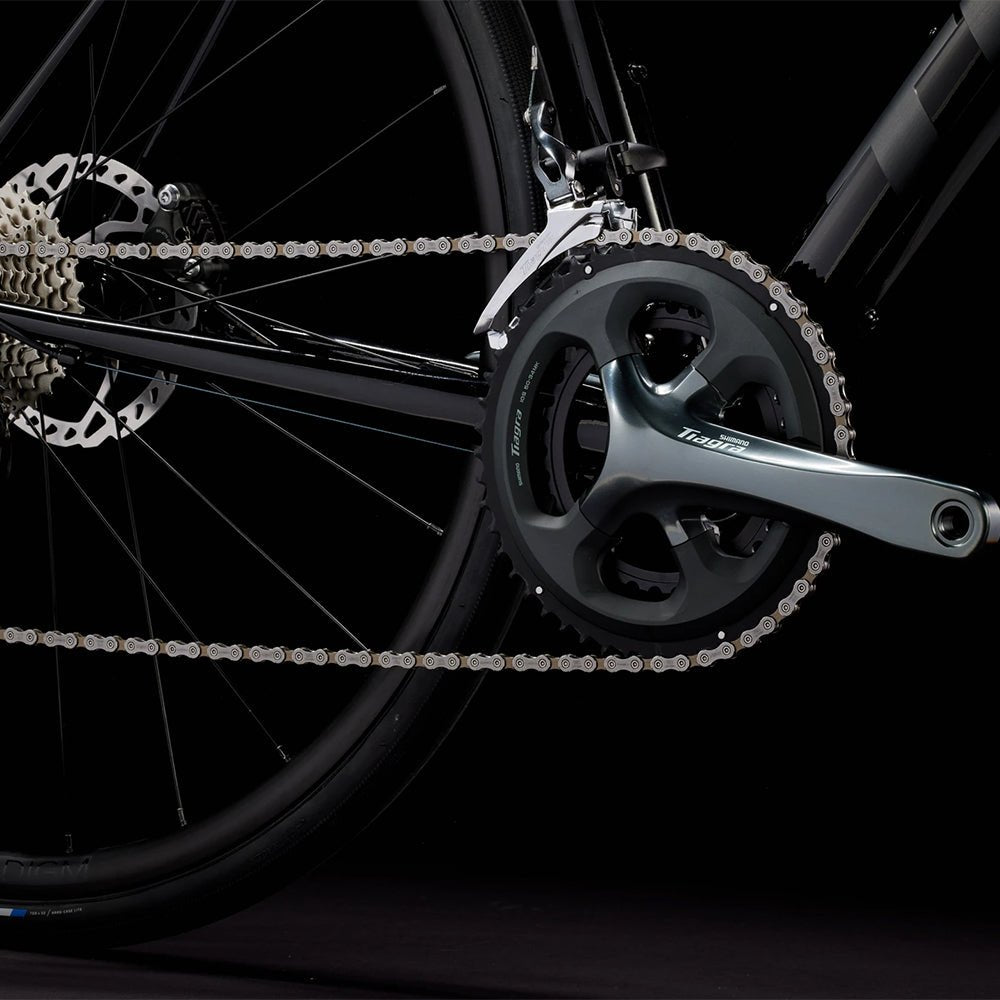

DRIVETRAIN
SHIFTER Shimano Tiagra R4725, short-reach lever, 10-speed
FRONT DERAILLEUR Shimano Tiagra 4700, 31.8mm clamp
REAR DERAILLEUR Shimano Tiagra 4700, long cage, 34T max cog
CRANK Size: 44 Shimano Tiagra 4700, 50/34, 165mm length
Size: 49, 52 Shimano Tiagra 4700, 50/34, 170mm length
Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5mm length
Size: 58, 61 Shimano Tiagra 4700, 50/34, 175mm length
CASSETTE Shimano HG500, 11-32, 10 speed
CHAIN Shimano Tiagra HG54, 10-speed
BOTTOM BRACKET Shimano RS500, 68mm, threaded external

COMPONENTS
SADDLE Size: 44, 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width
SEATPOST Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
HANDLEBAR Size: 44, 47 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 36 cm width
Size: 50 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 58, 60, 62 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
HANDLEBAR TAPE Bontrager Supertack Perf tape
STEM Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
HEADSET FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
BRAKE ROTOR Size: 44, 49, 52, 54, 56, 58, 61 Shimano RT66, 160mm, 6-bolt
Size: 44, 49, 52, 54, 56, 58, 61 Shimano RT66, 6-bolt, 160 mm
BRAKE Shimano Tiagra hydraulic disc

WEIGHT
WEIGHT 56 - 10.48 kg / 23.11 lbs
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

TECHNOLOGY

IsoSpeed Fork

It's a one-two punch: generous ride-tuned sweep and shape increases compliance for a smoother ride, and unique dropout placement optimizes the wheelbase.

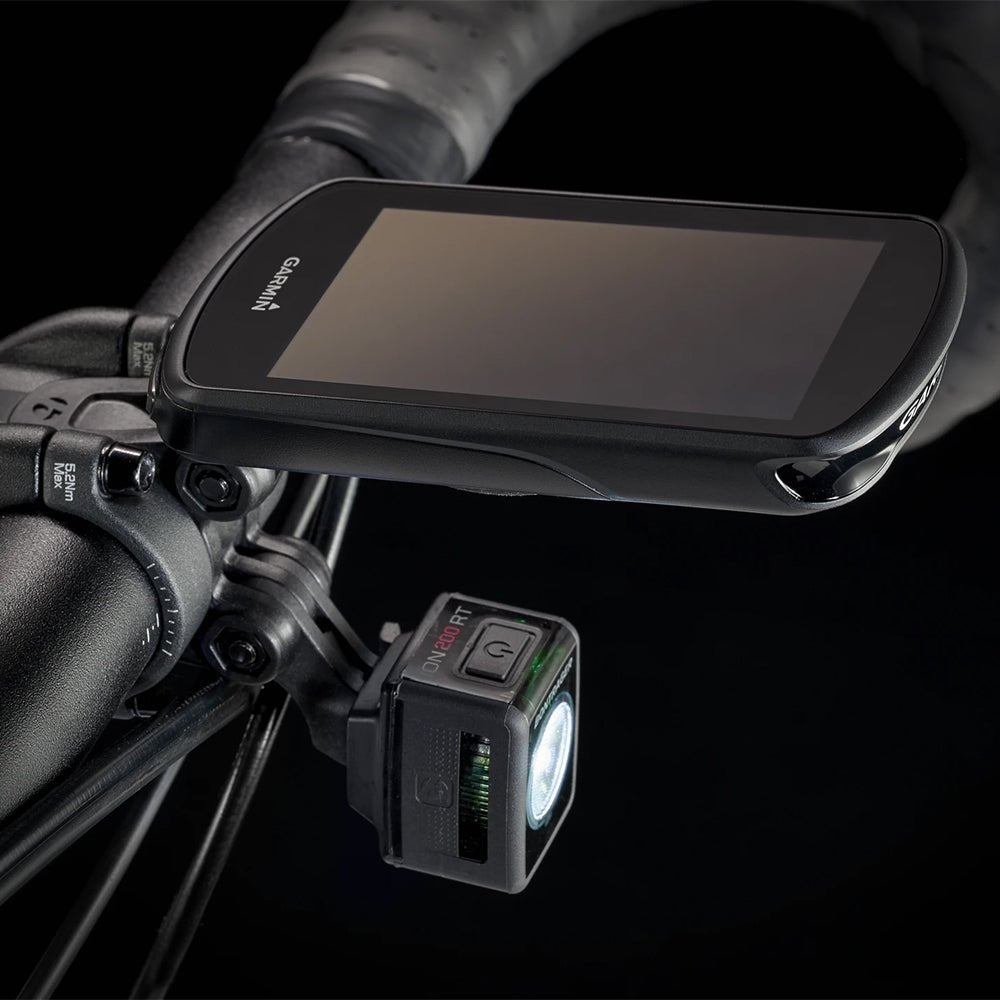

Blendr-compatible stem

Bontrager Blendr stem technology lets you clip your gear directly to the stem for clean looks, maximum user friendliness.

Endurance Fit

As befits the world’s most advanced endurance racing bikes, we’ve developed the world’s most stable racing geometry. Still racy, but with a slightly higher head tube for better stability and greater comfort through the entire ride.
