TREK

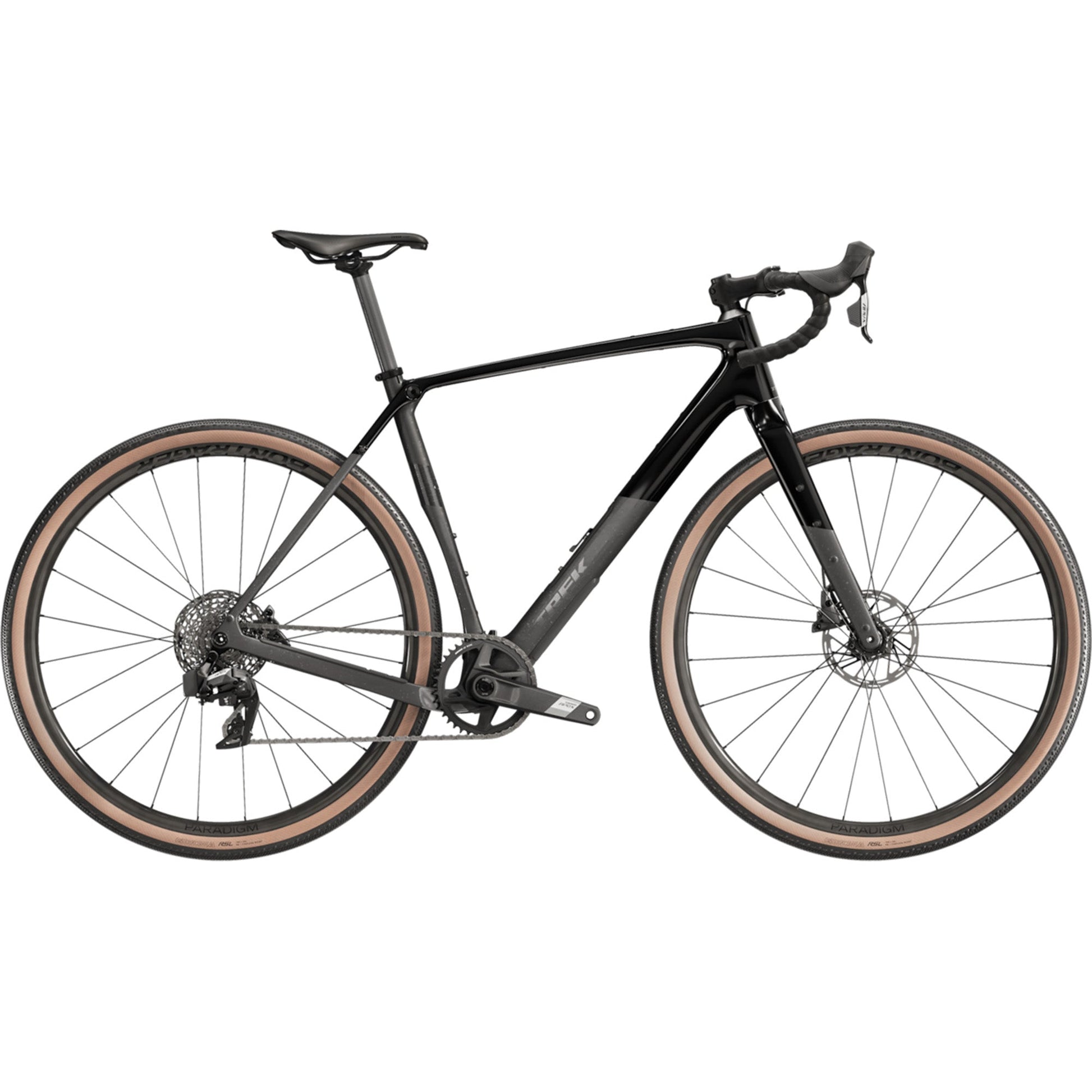

Trek Checkpoint SL 5 AXS Gen 3 Bike

Trek Checkpoint SL 5 AXS Gen 3 Bike

Regular price $4,299.99
Sale price $4,299.99 Regular price $4,299.99

Lowest Price Guarantee

Details
Color: Black Matte Carbon Smoke
Size: M

Please note: In Store Pickup Only

60 Day Returns Details
Talk to a human: Call or Chat
View full details

Trek Checkpoint SL 5 AXS Gen 3 Bike

Specs

It's right for you if...

You want a carbon gravel bike for exploring the beyond, and want to save on parts you can upgrade over time. You want the gravel-smoothing benefits of IsoSpeed tech that soaks up chatter from below so can ride stronger longer, and plenty of mounts to carry all your gear and hydration.

♡ Why you'll love it ♡

  1. Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
  2. Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer
  3. A SRAM Apex XPLR AXS 12-speed drivetrain offers precise, fully wireless shifting that's made for the roughest roads
  4. Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy gravel roads
  5. You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
  6. Compatible with a dropper post (all frame sizes) and a suspension fork (all sizes except XS)

The tech you get

A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50mm tires (as measured). A 12-speed 1x SRAM Apex XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seatpost, and Tubeless Ready Bontrager Paradigm SL wheels with 42mm tires.

SPECS

FRAMESET
FRAME 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

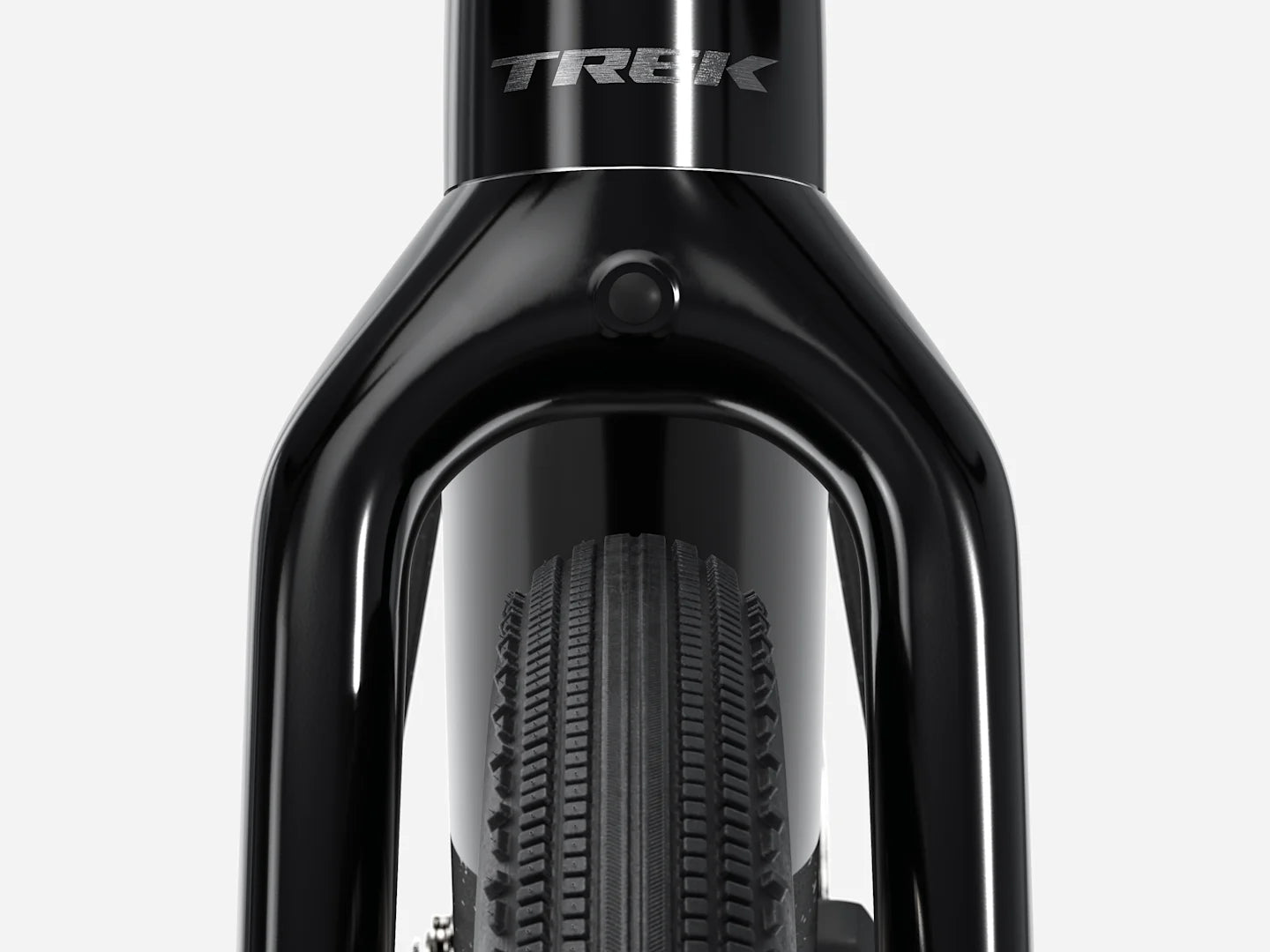

FORK Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
WHEELS
FRONT Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
REAR Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
FRONT SKEWER Bontrager Switch chamfered thru axle, removable lever
REAR SKEWER Bontrager Switch chamfered thru axle, removable lever
RIM STRIP Bontrager TLR
TIRES Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
TIRE PART Bontrager TLR sealant, 180 ml/6 oz
MAX TIRE SIZE 50mm without fenders, 42mm with fenders
DRIVETRAIN
SHIFTER SRAM Apex, 12 speed
SRAM Apex AXS, 12 speed
CRANK Size: M = SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: ML-L = SRAM Apex 1, 40T, DUB Wide, 172.5mm length
REAR DERAILLEUR SRAM Apex XPLR eTap AXS, 44T max cog
BOTTOM BRACKET SRAM DUB, T47 threaded, internal bearing
CASSETTE SRAM XPLR PG-1231, 11-44, 12 speed
CHAIN SRAM Apex, 12 speed
MAX CHAINRING SIZE 1x:44 2x: 46/30
COMPONENTS
SADDLE Verse Short Comp, steel rails, 145mm width
SEATPOST Bontrager carbon, 27.2mm, 8mm offset, 330mm length
HANDLEBAR Size: M = Bontrager Elite Gravel, alloy, 42cm width
Size: ML-L = Bontrager Elite Gravel, alloy, 44cm width
HANDLEBAR TAPE Bontrager Supertack Perf tape
STEM Size: M-ML = Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: L = Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
BRAKE ROTOR SRAM Paceline, rounded, centerlock, 160mm
ROTOR SIZE Max brake rotor sizes: 180mm front & rear
E-SYSTEM
BATTERY SRAM eTap battery pack (with charger)
ACCESSORIES
BAG Bontrager BITS Internal Frame Storage Bag
