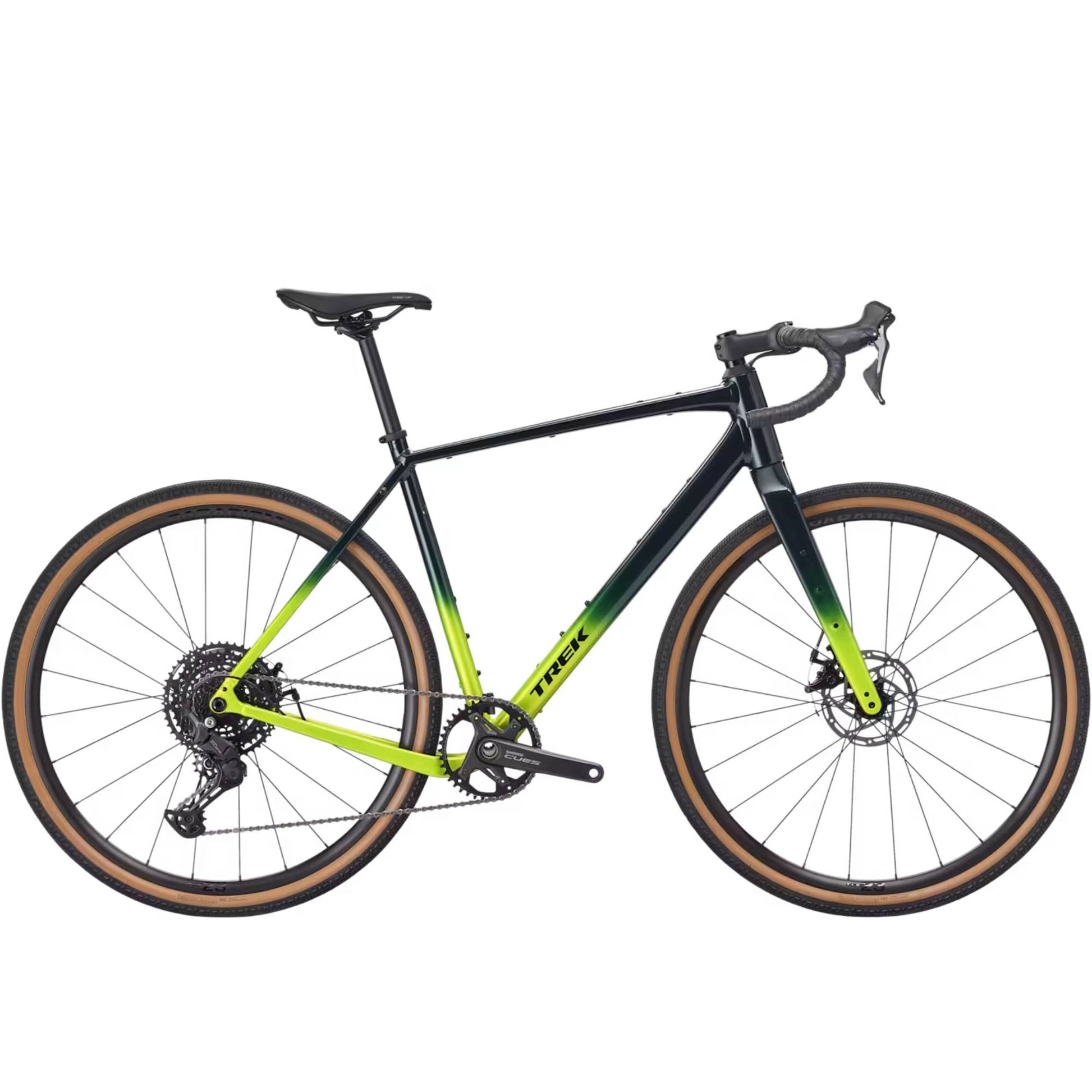

Trek Checkpoint ALR 3 Gen 3 Bike

Trek Checkpoint ALR 3 Gen 3 Bike

$1,999.99
$1,999.99 $1,999.99

Lowest Price Guarantee

Details
See Reviews
Color: Daintree Green Power Surge
Size: L

Please note: In Store Pickup Only
60 Day Returns Details
Talk to a human: Call or Chat

Quick Overview

Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring anywhere. Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It's spec'd to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50mm tires,10-speed Shimano CUES 6000 shifting, mechanical disc brakes, and tons of mounts for bags and accessories. Read More
All specs
View full details

Trek Checkpoint ALR 3 Gen 3 Bike

Product Details

Trek Checkpoint ALR 3 Gen 3 Bike

Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring anywhere.

Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It's spec'd to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50mm tires, 10-speed Shimano CUES 6000 shifting, mechanical disc brakes, and tons of mounts for bags and accessories.

This bike is best for:

  • Upgrading bike owners — The Checkpoint ALR 3 Gen 3 provides a great upgrade point for current bike owners with its enhanced specifications, features, and reliability.

  • Gravel riding — The included Bontrager Girona tires are a lightly treaded fast-rolling gravel tire that’s perfect for speed and grip in hardpacked and mixed conditions. The carbon fork helps with road vibration over gravel roads or potholes.

  • Active riding — The active road geometry gives you a forward position for efficiency and comfort.

  • Commuting — Provides a solid choice for commuters with great reliability and maneuverability for everyday riding.

  • All-in-one versatility — The Checkpoint ALR 3 provides an all-in-one choice for those looking for a versatile bike capable of adapting to the rider's preference, whether on the road for commuting, fitness, or rail trail riding.

Tech Features

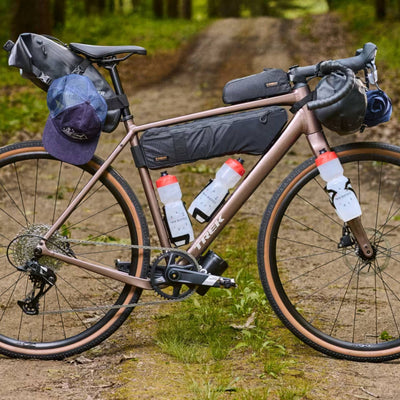

  • Mounts Galore

    The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.

  • Gravel Endurance Geometry

    Designed with Gravel Endurance geometry with a higher stack and shorter reach for improved comfort and control on long days in the saddle.

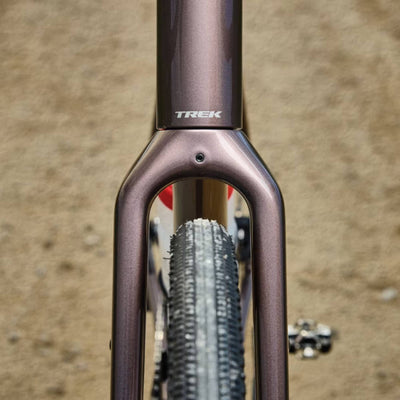

  • Increased Tire Clearance

    Designed with 50mm (or 29 x 2.0)* tire clearance for more grip and comfort on challenging terrain. *As measured

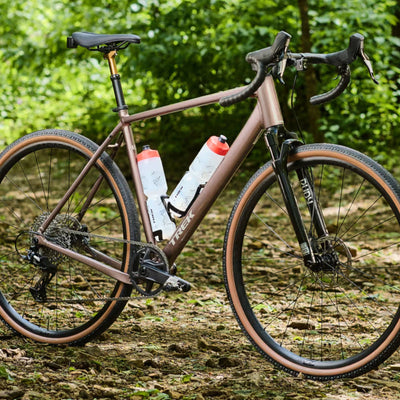

  • Suspension Fork and Dropper Post Compatible

    Compatible with a suspension fork* and dropper post for riders tackling technical descents or seeking more aggressive off-road performance. *Available on all sizes except XS frames

  • Alphanext - Low Emission Aluminum

    Starting in 2024, Trek began removing high-emission aluminum from their manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike Trek makes - this one included - has made the switch, driving a major drop in Trek's footprint.

Specs

FRAMESET
FRAME 300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
FORK Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

WHEELS
HUB FRONT Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
SKEWER FRONT Bontrager Switch chamfered thru axle
HUB REAR Bontrager Switch chamfered thru axle
SKEWER REAR Bontrager Switch chamfered thru axle, removable lever
RIM Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
SPOKES 14g stainless steel, Black
TIRES Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
TIRE PART Bontrager TLR sealant, 180 ml/6 oz
MAX TIRE SIZE 50mm without fenders, 42mm with fenders (as measured, see manual for details)

DRIVETRAIN
SHIFTER Shimano CUES 10 Speed Right STU303010R
REAR DERAILLEUR Shimano CUES U6000 GS
CRANK Size: M, ML - Shimano CUES FCU60301, 40T ring, 170mm length
Size: L, XL - Shimano CUES FCU60301, 40T ring, 172.5mm length
BOTTOM BRACKET Praxis, T47 threaded, internal bearing
CASSETTE Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
CHAIN Shimano LG500
MAX CHAINRING SIZE 1x:44 2x: 46/30

COMPONENTS
SADDLE Verse Short Comp, steel rails, 145mm width
SEATPOST Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*HANDLEBAR Size: XS, S - Bontrager Elite Gravel, alloy, 40cm width
Size: M, ML - Bontrager Elite Gravel, alloy, 42cm width
Size: L - Bontrager Elite Gravel, alloy, 44cm width
Size: XL - Bontrager Elite Gravel, alloy, 46cm width
HANDLEBAR TAPE Bontrager Supertack Perf tape

WEIGHT
WEIGHT ML - 10.41 kg / 22.96 lbs (with TLR sealant, no tubes)
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
⚠️
Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
