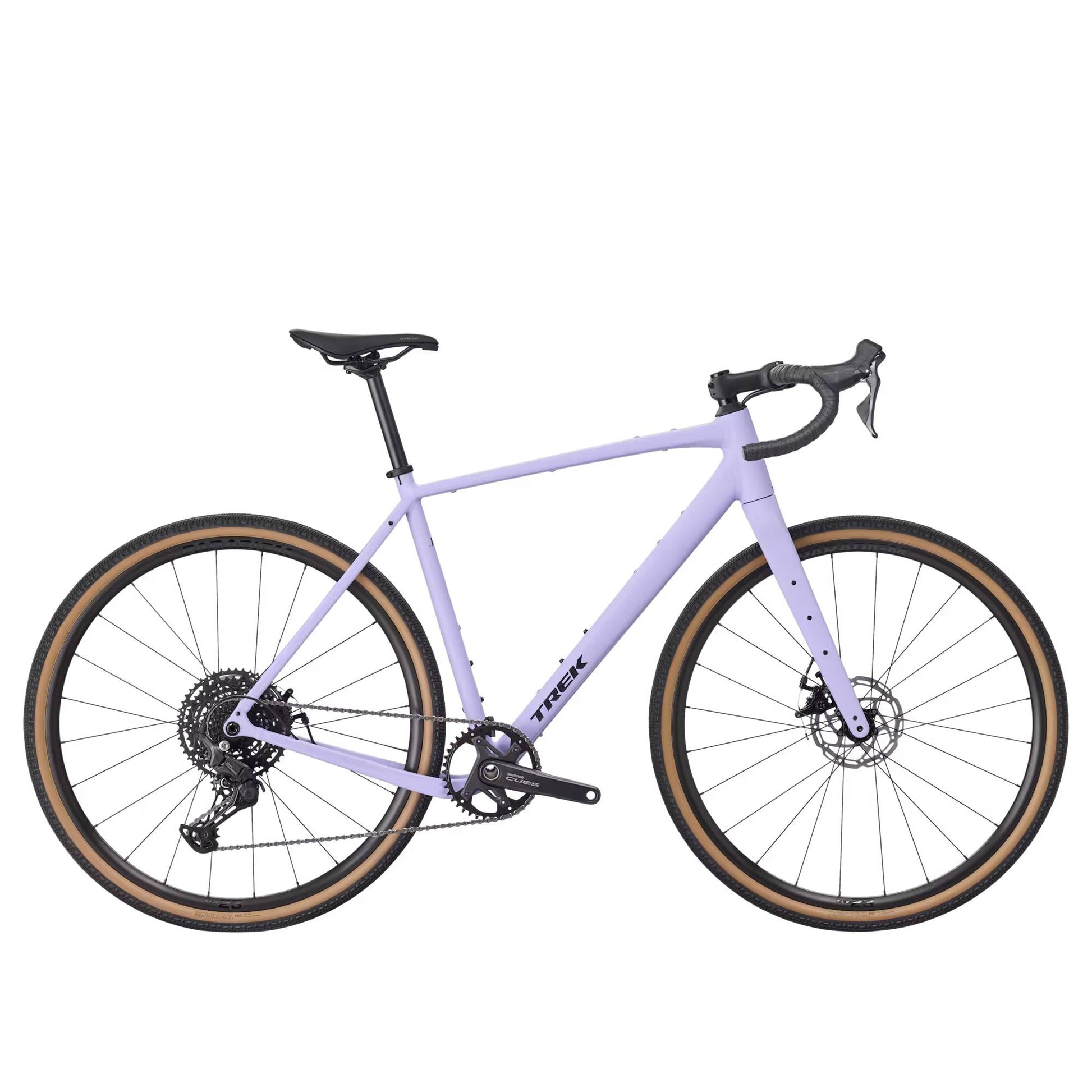

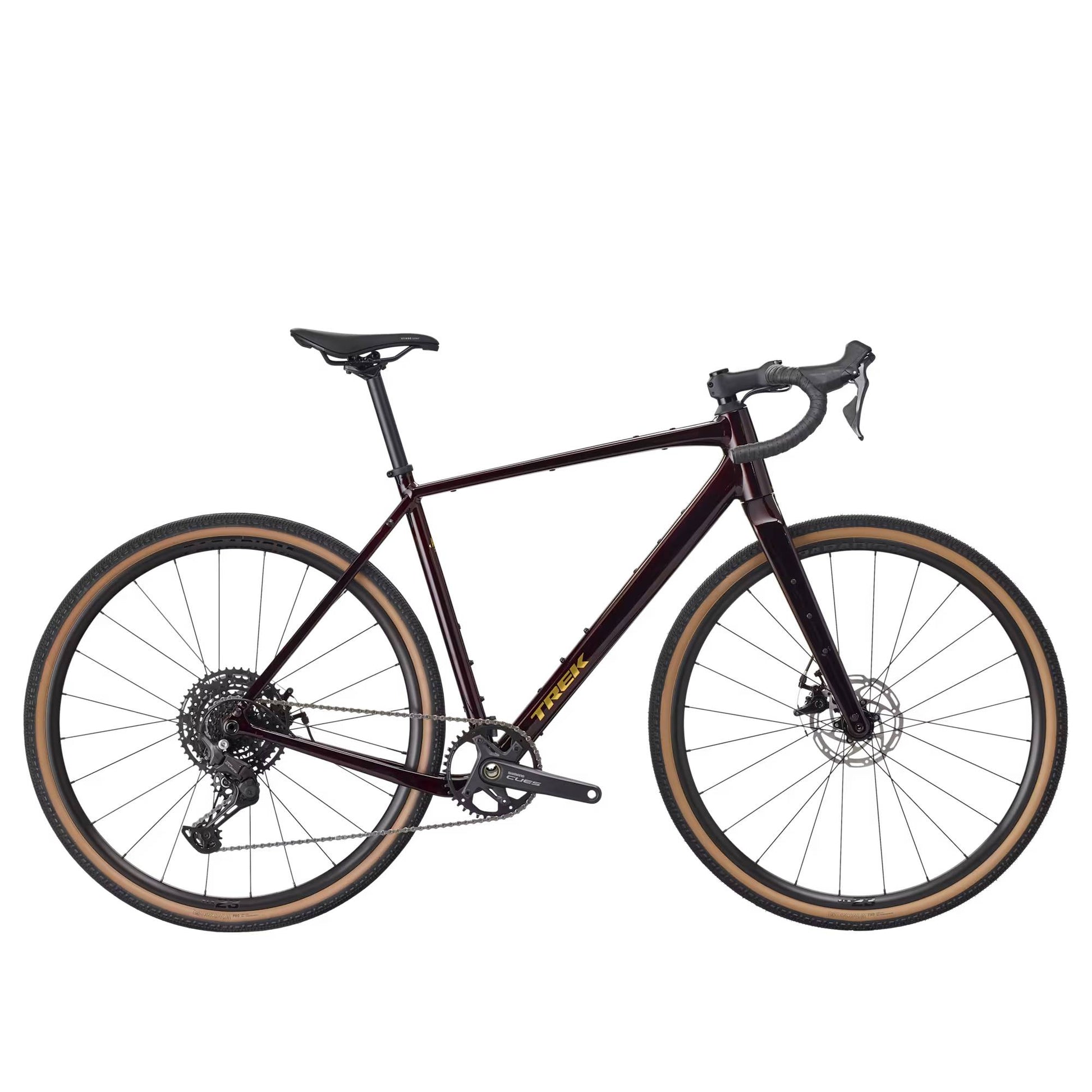

Trek Checkpoint ALR 3 Gen 3 Bike

Trek Checkpoint ALR 3 Gen 3 Bike

Regular price $1,999.99
Sale price $1,999.99 Regular price $1,999.99

Lowest Price Guarantee

Details
Color: Matte Lavender Haze
Size: M

Please note: In Store Pickup Only

60 Day Returns Details
Talk to a human: Call or Chat

Quick Overview

Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring anywhere. Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It's spec'd to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50mm tires,10-speed Shimano CUES 6000 shifting, mechanical disc brakes, and tons of mounts for bags and accessories. Read More
View full details

Trek Checkpoint ALR 3 Gen 3 Bike

Product Details

Trek Checkpoint ALR 3 Gen 3 Bike

Checkpoint ALR 3 is an adventure-ready aluminum gravel bike built for exploring anywhere.

Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It's spec'd to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50mm tires, 10-speed Shimano CUES 6000 shifting, mechanical disc brakes, and tons of mounts for bags and accessories.

This bike is best for:

  • Upgrading bike owners — The Checkpoint ALR 3 Gen 3 provides a great upgrade point for current bike owners with its enhanced specifications, features, and reliability.

  • Gravel riding — The included Bontrager Girona tires are a lightly treaded fast-rolling gravel tire that’s perfect for speed and grip in hardpacked and mixed conditions. The carbon fork helps with road vibration over gravel roads or potholes.

  • Active riding — The active road geometry gives you a forward position for efficiency and comfort.

  • Commuting — Provides a solid choice for commuters with great reliability and maneuverability for everyday riding.

  • All-in-one versatility — The Checkpoint ALR 3 provides an all-in-one choice for those looking for a versatile bike capable of adapting to the rider's preference, whether on the road for commuting, fitness, or rail trail riding.

Specs

FRAMESET
FRAME 300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
FORK Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

WHEELS
HUB FRONT Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
SKEWER FRONT Bontrager Switch chamfered thru axle
HUB REAR Bontrager Switch chamfered thru axle
SKEWER REAR Bontrager Switch chamfered thru axle, removable lever
RIM Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
SPOKES 14g stainless steel, Black
TIRES Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
TIRE PART Bontrager TLR sealant, 180 ml/6 oz
MAX TIRE SIZE 50mm without fenders, 42mm with fenders (as measured, see manual for details)

DRIVETRAIN
SHIFTER Shimano CUES 10 Speed Right STU303010R
REAR DERAILLEUR Shimano CUES U6000 GS
CRANK Size: M, ML - Shimano CUES FCU60301, 40T ring, 170mm length
Size: L, XL - Shimano CUES FCU60301, 40T ring, 172.5mm length
BOTTOM BRACKET Praxis, T47 threaded, internal bearing
CASSETTE Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
CHAIN Shimano LG500
MAX CHAINRING SIZE 1x:44 2x: 46/30

COMPONENTS
SADDLE Verse Short Comp, steel rails, 145mm width
SEATPOST Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*HANDLEBAR Size: XS, S - Bontrager Elite Gravel, alloy, 40cm width
Size: M, ML - Bontrager Elite Gravel, alloy, 42cm width
Size: L - Bontrager Elite Gravel, alloy, 44cm width
Size: XL - Bontrager Elite Gravel, alloy, 46cm width
HANDLEBAR TAPE Bontrager Supertack Perf tape

WEIGHT
WEIGHT ML - 10.41 kg / 22.96 lbs (with TLR sealant, no tubes)
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
⚠️
Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
