BEST OF BOTH WORLDS

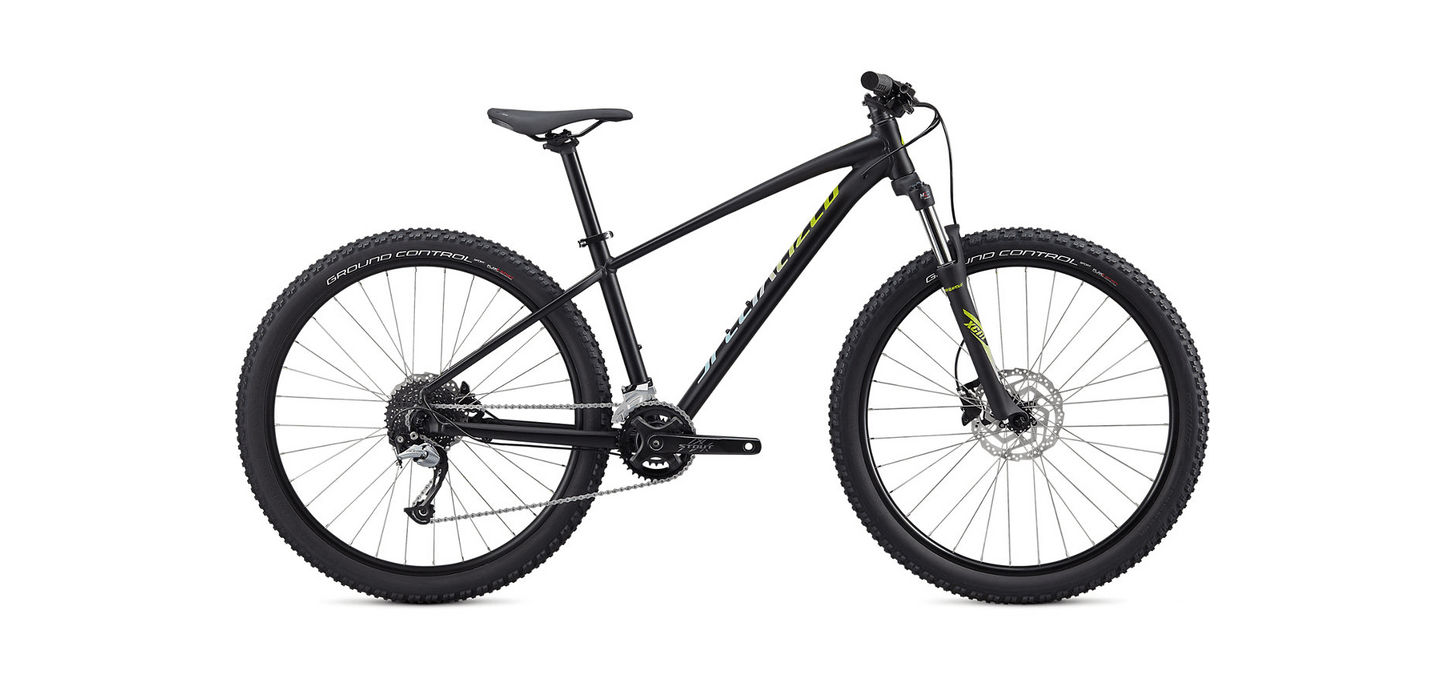

A mountain bike is freedom: the ability to pick a spot on the map and say, “Let’s go there,” or maybe go off the map altogether. With a lightweight frame, responsive front suspension, and powerful hydraulic disc brakes, the Pitch 27.5 is your perfect adventure partner.
Riders have long debated whether fast-rolling 29er wheels were better than nimble 26ers. Turns out, the sweet spot for many is right in between, so the Pitch rolls on 27.5-inch wheels that keep much of a 29er’s confident handling in a tighter, lighter package.
STRONG YET SMOOTH
The A1 Premium Aluminum frame is burlier than a brontosaurus’s backbone. But strong doesn’t mean harsh or heavy. Our engineers went over every tube, tweaking, pinching, nipping and tucking to make sure it offers a smooth ride no matter what the trail conditions are.
TOP TO BOTTOM QUALITY
The Pitch’s sure-handling Sport Trail 27.5 Geometry provides unrivaled stability.
SR SunTour XCE suspension fork keeps you grounded on the most technical trails.
Shimano hydraulic disc brakes offer best-in-class power and reliability.
Details & Specs
| Terrain |
Mountain
|
Brakes |
Shimano BR-MT200, hydraulic disc
|
| Shifters/ Derailleur |
Shimano EF505, hydraulic, 2x8-speed
Front: Shimano Tourney FD-TY710
Back: Shimano Tourney TX, 8-speed
|
Frame |
A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
|
| Wheels/ Rims/Inner Tube |
Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3"
Stout Trail 27.5, alloy, disc only, double-wall, 25mm inner width, 32h
Schrader valve
|
Crank & Chain |
Stout 2x, forged alloy
KMC X8 EPT, anti-rust coating, 8-speed w/ reusable Missing Link™
|
| Seat |
Specialized Canopy Sport, steel rails, 155mm
|
Cassette |
SunRace, 8-speed, 11-34t
|
| Hubs |
Front: Shimano, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Back: Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h |
Pedals |
Specialized Dirt
|
| Handlebars |
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
|
Tape/Grips |
Specialized MTB Grip, lock-on
|
| Stem |
Stout 3D-forged alloy, 31.8mm, 6-degree rise
|
Seatpost |
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
|
| Fork |
SR SunTour XCE 28, Rx Tune, coil spring, 42mm offset, 80/100mm of travel (size-specific)
|
|
|
