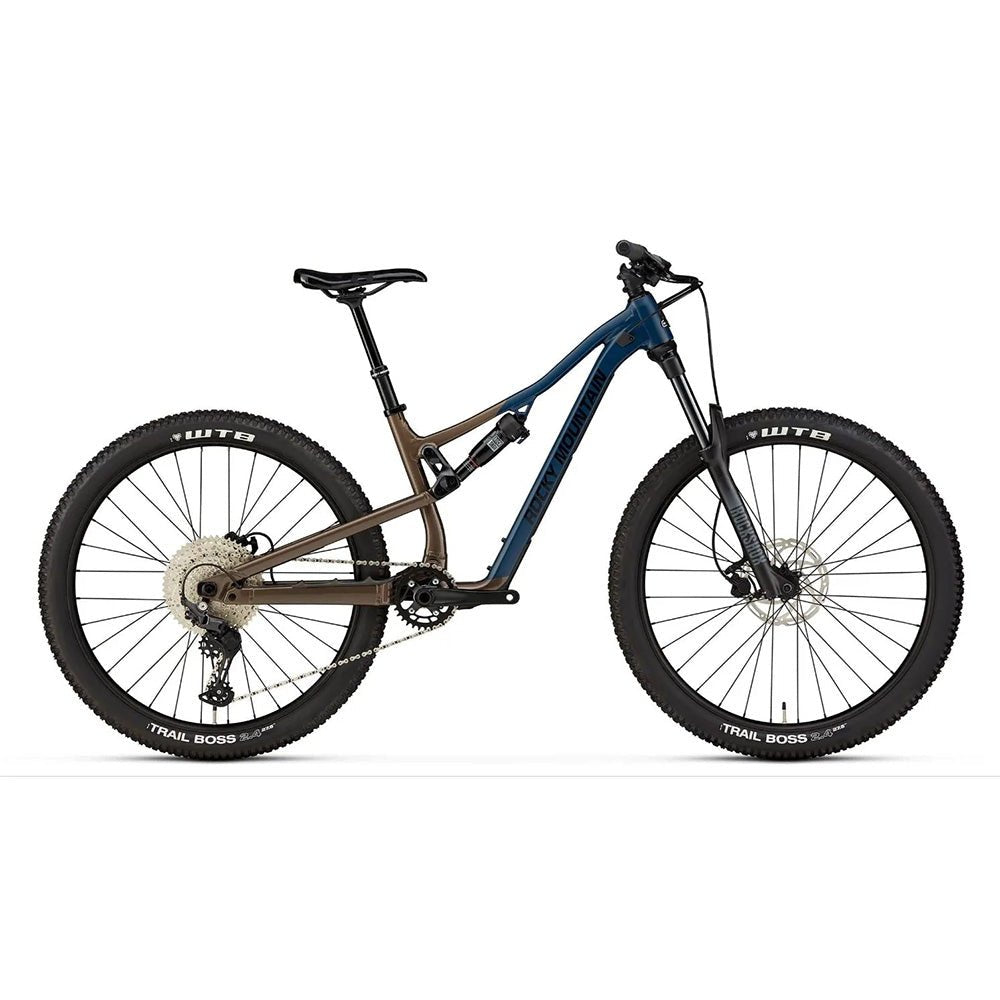

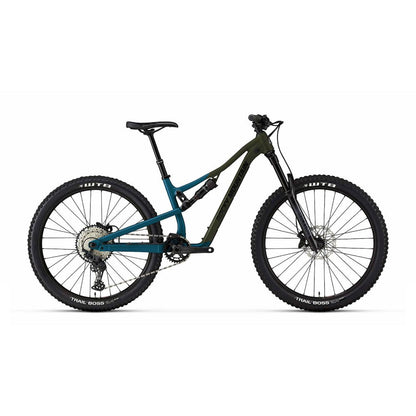

If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
SPECIFICATIONS
Frame: FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. FORM™ Alloy Rear Triangle
Fork: RockShox Recon Silver RL 150mm | 42mm Offset
Front Travel: 150mm
Shock: RockShox Deluxe Select | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel: 140mm
Headset: FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem: Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m
HandlebarRocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: Rocky Mountain Lock On Light
Brakes: Tektro HD-M275 | Shimano Pad Compatible
Shifters: Shimano Deore 11spd
Rear Derailleur: Shimano Deore 11spd
Cranks & Chainring: Rocky Mountain Microdrive | 32T |Sram 76mm BCD | 24mm Spindle | Crank Length: XS = 165mm | SM - XL = 170mm
Bottom Bracket: Rocky Mountain Sealed BB92 - Shimano Compatible
Cassette: SunRace CSMS8 EA1 11-51T
Chain: KMC X11-1
Front Hub: Shimano MT410 | 15mm Boost
Rear Hub: Shimano MT400 Boost 148mm
Spokes: 2.0 Stainless
Rims: Rocky Mountain TR30 Tubeless | 32H / Tubeless Compatible - Tape / Valves / Sealant Not Incl
TiresF: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4
Seatpost: Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle: WTB Volt 142
