Mondraker

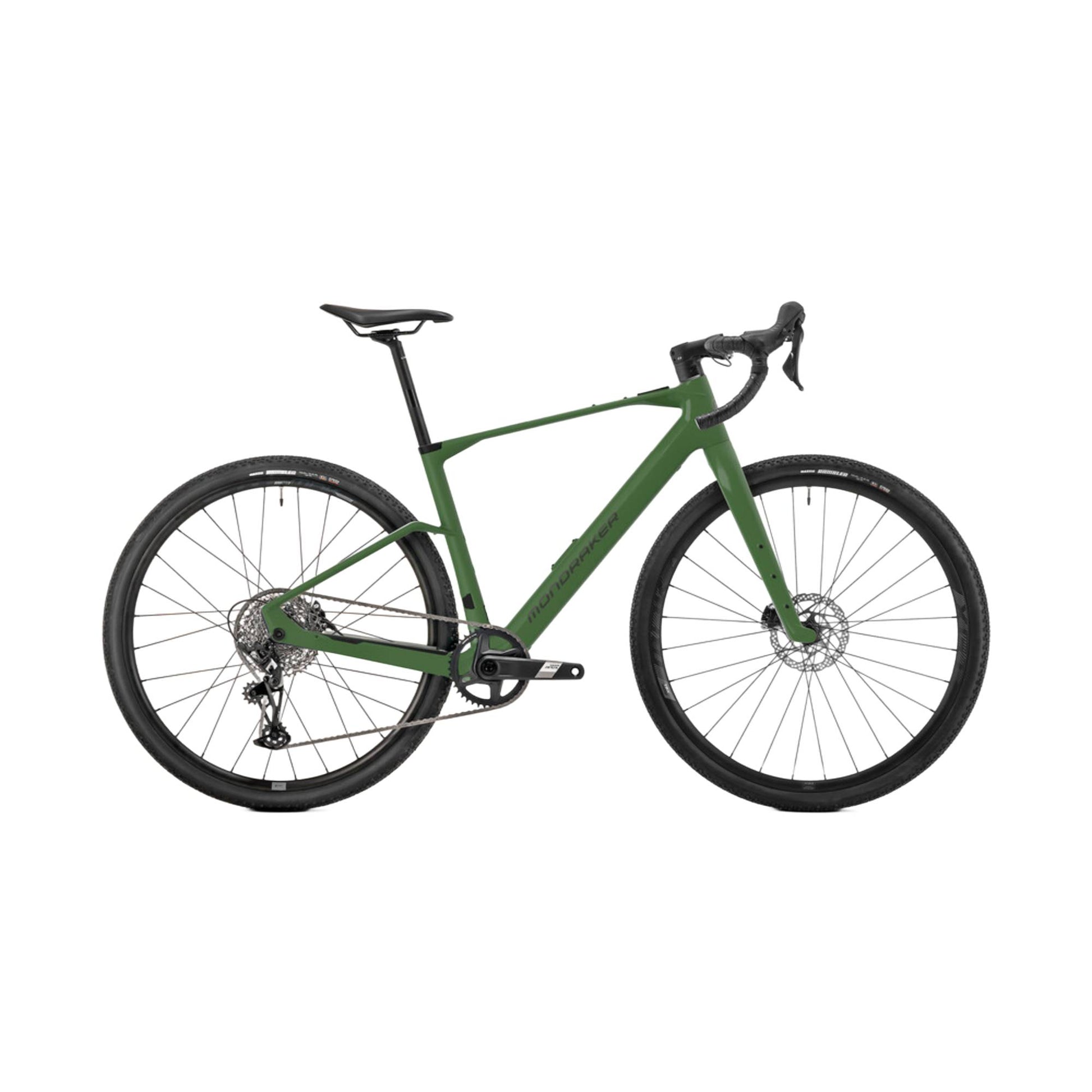

Mondraker Dusty S E Bike

Mondraker Dusty S E Bike

$5,599.99
$5,599.99 $7,498.99
25% Off

Lowest Price Guarantee

Details
See Reviews
Color: Overland Green
Size: M

Please note: In Store Pickup Only
60 Day Returns Details
Talk to a human: Call or Chat
All specs
View full details

Mondraker Dusty S E Bike

Specs

Specifications

  • Frame: e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
  • Sizes: S: 440mm / M: 460mm / L: 500mm / XL: 530mm
  • Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
  • Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
  • Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, L size: 80mm, XL size: 90mm
  • Handlebar: Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm L size: 440mm XL size: 460mm
  • Grips: Onoff HEX Bartape
  • Seatpost: Onoff S3 0-R, diameter 31.6mm, length 400mm
  • Saddle: Fizik Terra Argo X7 150mm
  • Front Brake: Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
  • Rear Brake: Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
  • Brake Lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
  • Rims: MDK-XG1, 25mm internal width, tubeless ready, 28 spokes
  • Spokes: CN round stainless steel
  • Front Hub: Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
  • Rear Hub: Mahle X20 Drive Unit, MS freehub
  • Front Tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
  • Rear Tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
  • Crankset: Sram Apex 1 Wide, S size: 165mm M size: 170mm L size: 172,5mm XL size: 175mm, CL 47,5
  • Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
  • Bottom Bracket: Mahle DUB pressfit, sealed bearings, w/ torque sensor
  • Chain: Sram SX Eagle, 12s, Powerlock
  • Rear Derrailleur: Sram GX Eagle,12s
  • Shift Levers: Sram Apex D1 12s, X-Actuation 1:1, single click
  • Cassette: Sram PG 1210 11-50, 12s
  • Motor: Mahle X20 Drive Unit
  • Battery: Mahle X20 IX350Wh
  • Display: Pulsar One Wireless
  • Derailleur Hanger: Mondraker M076
  • Others: Optional external battery: Mahle e185Wh
