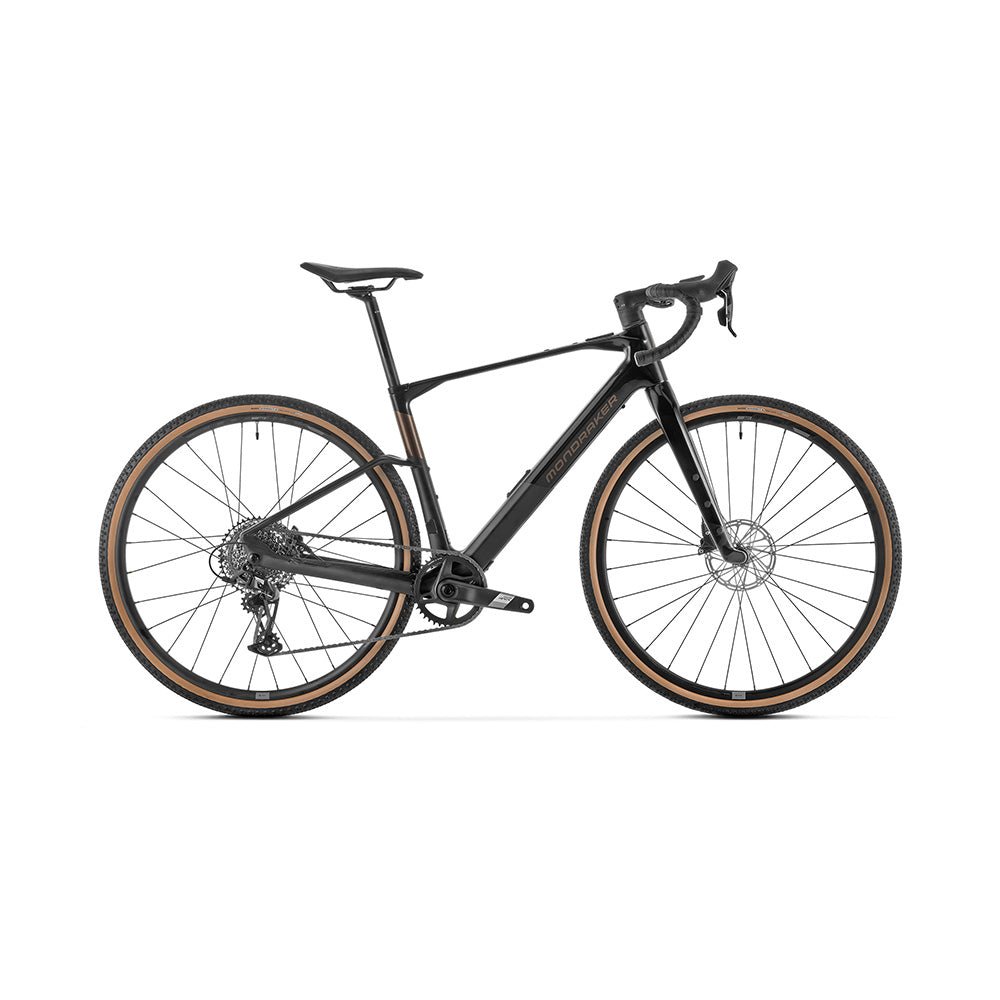

Mondraker Dusty R E-Bike

COMPONENTS

TECHNICAL SPECS

• Frame

  e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.



  Sizes

  S: 440mm / M: 460mm / L: 500mm / XL: 530mm

• Fork

  Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork



  Headset

  OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

• Stem

  OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm



  Handlebar

  OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm

• Grips

  Barium gravel dark grey



  Seatpost

  OnOff Barium gravel microadjust diameter 27.2mm, length 400mm

• Saddle

  FIZIK Terra Argo X7 150mm



  Front brake

  SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

• Rear brake

  Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad



  Brake lever

  Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers

• Rims

  MDK-XG1, 23mm internal width, tubeless ready, 28 spokes



  Spokes

  CN round stainless steel

• Front hub

  Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts



  Rear hub

  Mahle X20 Drive Unit, HG freehub

• Front tire

  Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead



  Rear tire

  Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

• Crankset

  SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.



  Rings

  Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

• Bottom bracket

  Mahle DUB pressfit, sealed bearings, w/ torque sensor



  Chain

  Sram Apex, 12s, Powerlock

• Rear derrailleur

  Sram Apex XPLR 12s



  Shift levers

  Sram Apex D1 12s, X-Actuation 1:1, single click

• Casette

  Sram PG-1231 11-44, 12s



  Derailleur hanger

  Mondraker M076

• Others

  Optional external battery: Mahle e185Wh



  Weight

  29,8 lb

• Display

  Pulsar One Wireless



  Motor

  Mahle X20 Drive Unit

• Battery

  Mahle X20 IX350Wh
