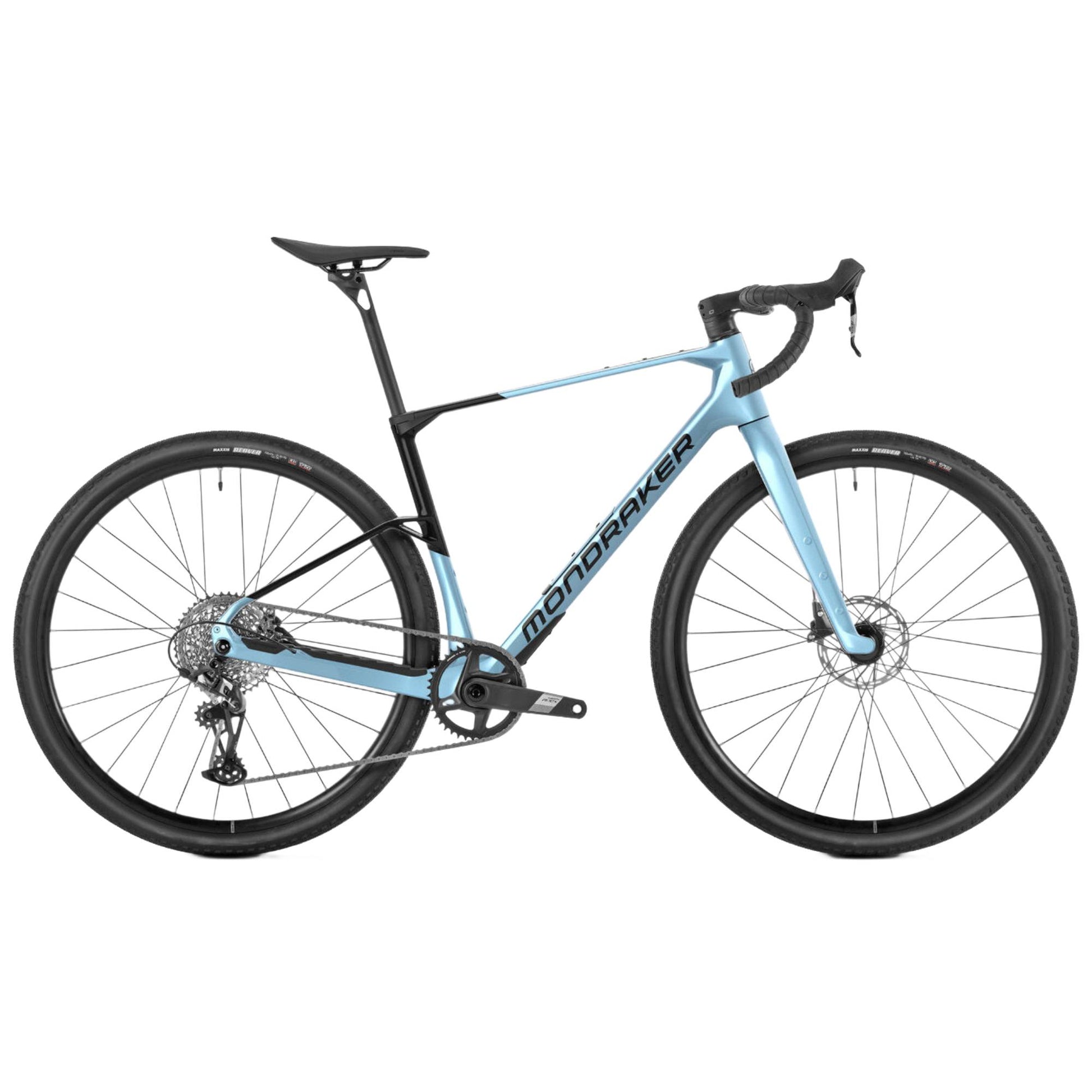

The Mondraker Arid Carbon S 2026 represents the evolution of the gravel bike, combining the Spanish brand’s mountain biking expertise with the needs of gravel cyclists. Weighing only 9.7 kg, this bike is designed to deliver high performance on mixed terrains, from paved roads to challenging trails.
Tech Specs
- Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
- Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
- Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
- Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
- Handlebar: Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
- Grips: Onoff HEX Bartape
- Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
- Saddle: Fizik Vento Argo X5 140mm
- Front brake: Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
- Rear brake: Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
- Brake lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
- Rims: Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
- Spokes: Mavic Steel double butted flat spokes
- Front hub: Mavic, 12x100mm, IS 6 bolts
- Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, HG Freehub
- Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
- Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
- Crankset: Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
- Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
- Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85,5mm
- Chain: Sram Apex, 12s, Powerlock
- Rear derrailleur: Sram Apex XPLR 12s
- Shift levers: Sram Apex D1 12s, X-Actuation
- Casette: Sram PG-1231 11-44, 12s
- Derailleur hanger: Sram UDH
- Producer's weight: 9,7 kg
