Devinci Troy ST GX AXS 12s Bike
Devinci Troy ST GX AXS 12s Bike
Regular price
$6,999.99
Sale price
$6,999.99
Regular price
$6,999.99
Unit price
per
Couldn't load pickup availability

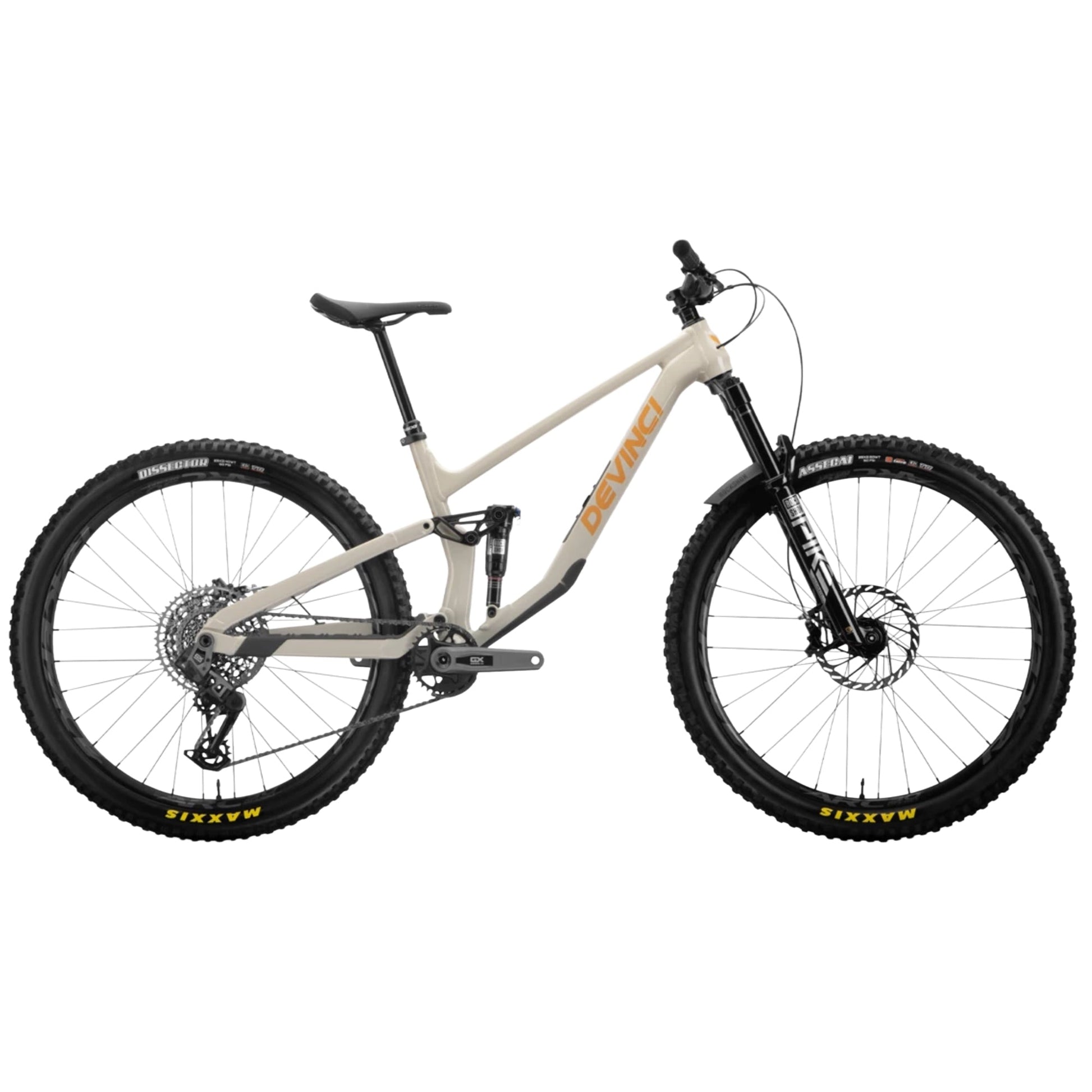

Devinci Troy ST GX AXS 12s Bike
Specs
Specs
Small but mighty.
The Troy ST! Small but mighty. With 130mm - 140mm of travel, it’s the sweet spot for just about anything. Agile, lively, and responsive, the ST is the black belt in the Troy family. From big missions in the alpine to epic singletracks or more casual family rides, it’s ready to answer the call.
Jump to Specs → Jump to Features →
Rock Shox Ultimate Series
Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The Troy GX AXS is equipped with the Pike Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Deluxe Ultimate takes care of rear shock duties, delivering incredible traction, tunability, and control.
Tailored Wheel Sizes
The XS and S sizes feature 27.5-inch front and rear wheels to accommodate smaller riders, while the M, L, and XL sizes of the Troy ST are equipped with 29-inch wheels, creating a fully balanced feel from the ground up.
SPECS
| HEADSET | FSA Orbit | 1.5 | Zero Stack |
| SEAT CLAMP | Alloy CNC | 34.9mm |
| SUSPENSION FORK | RockShox Pike Ultimate Charger 3.1 RC2 SB 140 | 44 Offset |
| REAR SHOCK | Rockshox Deluxe Ultimate 185x47.5 |
| HANDLEBAR | RaceFace Next R35 | B:35mm | R:20mm | W:800mm |
| STEM | RaceFace Turbine R35 | B:35mm | L:40mm | 0° |
| SADDLE | SDG BELAIR 3.0 |
| SEATPOST | SDG Tellis 31.6mm |
| SEATPOST LEVER | SDG Tellis | Matchmaker | 1x Lever |
| GRIPS | Devinci Performance | w/lock-on |
| FRONT BRAKE | SRAM Level Silver | 4 pistons |
| REAR BRAKE | SRAM Level Silver | 4 pistons |
| FRONT ROTOR | SRAM HS2 | 200mm |
| REAR ROTOR | SRAM HS2 | 200mm |
| REAR DERAILLEUR | SRAM GX Eagle AXS | T-Type | 12s |
| REAR SHIFTER | SRAM AXS POD | 12s |
| CRANKSET | SRAM GX Eagle AXS | T-Type | 32T | 1Guard | Boost 148 |
| BOTTOM BRACKET | SRAM DUB 73mm Threaded |
| CASSETTE | SRAM XS1275 | T-TYPE | 12s | 10-52T |
| CHAIN | SRAM GX | T-Type | 12s |
| FRONT RIM | RaceFace ARC30 27.5 | 30mm inner | TR |
| FRONT HUB | RaceFace Vault | 6bolts | TA 15x110mm |
| REAR HUB | RaceFace Vault | Boost148x12 | XD | 6bolts |
| REAR RIM | RaceFace ARC30 29 | 30mm inner | TR |
| SPOKES | Sapim Stainless 14G w/Nylok |
| FRONT TIRE | Maxxis Assegai | 29x2.5WT | 3C | EXO | TR | MaxxTerra |
| REAR TIRE | Maxxis Dissector | 27.5x2.4WT | 3C | Exo+ | TR | MaxxTerra |
FEATURES
MADE IN CANADA FRAME
Proudly made here. Each frame that bears our Made in Canada stamp represents our commitment to quality and sustainability.
OPTIMUM G04 6061-T6 ALUMINUM FRAME
Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes. The Optimum G04 designation appears on our high-end mountain bikes and electric mountain bikes.
UPDATED GEOMETRY
The improved geometry makes the Troy more capable than ever. Featuring a slacker head angle for confidently tackling technical sections, while a steeper seat tube angle helps you motor up the climbs.
SPLIT PIVOT
Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.
GEO-SAVER MULLET FLIP CHIP
The flip chip allows for the use of either a 27.5'' or 29'' rear wheel without altering the bike's geometry.
RIDER OPTIMIZED CHAINSTAY LENGTH
Shorter chainstays on sizes S and M and longer chainstays on sizes L and XL for a fully balanced ride feel on the trail, while size-specific front triangles improve stability and handling.
435mm on S - M
445mm on L - XL
