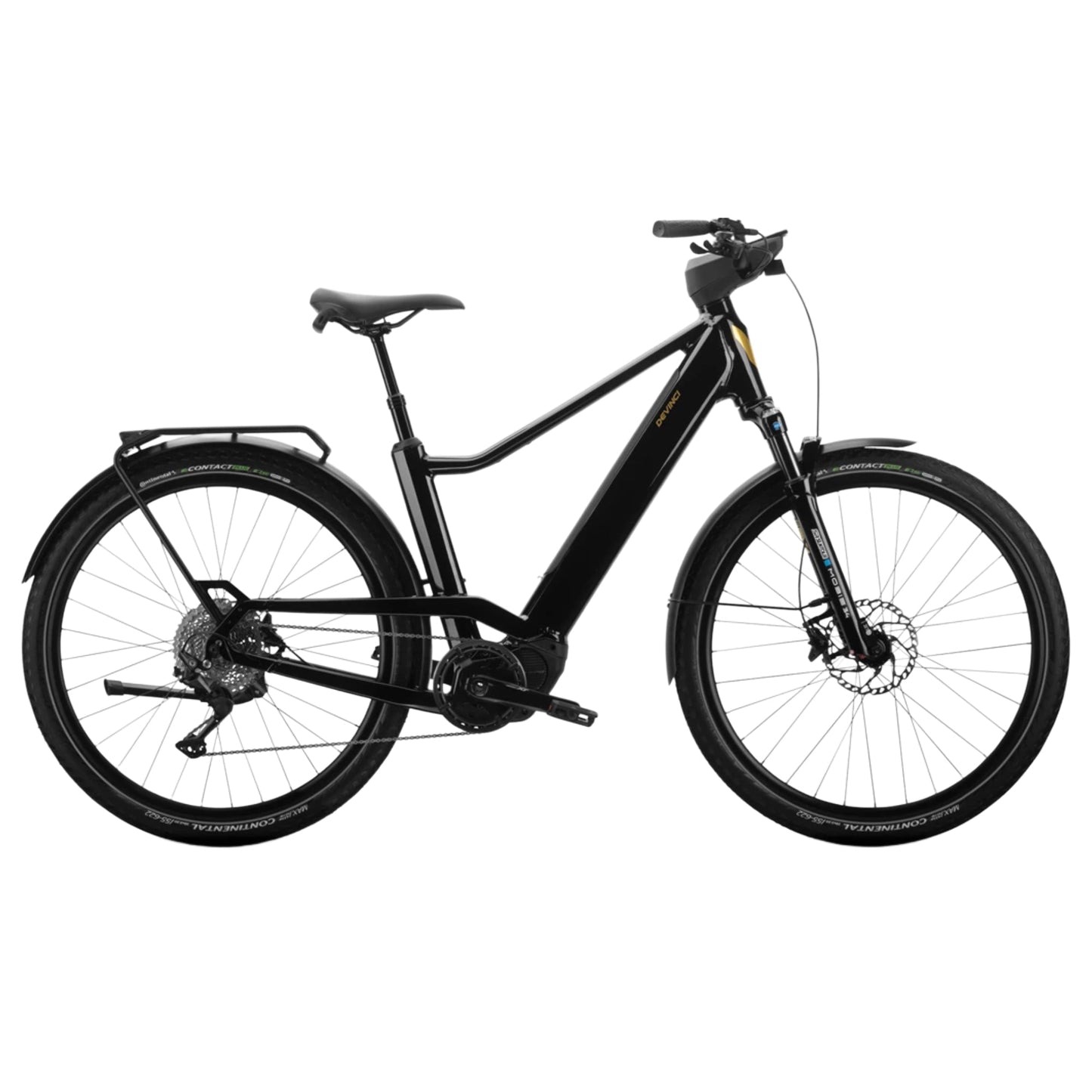

Devinci E-Griffin EP8 11s E Bike

THE E-BIKE SIMPLICITY

The E-Griffin takes the guesswork out of city and leisure biking. It’s built around a powerful Shimano Steps motor for reliable power on demand. No detail of the bike was overlooked. From the integrated handlebar display to the powerful hydraulic brakes, suspension fork and step-thru frame, it’s tailored to the needs and style of riding style. So you can ride often, with confidence.

TECHNICAL SPECIFICATIONS

Frame

• FRAME: Aluminum Optimum S03
• FORK: Suntour Mobie 34 80mm w/Preload adjuster
• HEADSET: FSA Custom
• SEAT CLAMP: Alloy CNC | 34.9mm

Cockpit

• HANDLEBAR: V2 Comp | 640mm | 48mm rise | 40° backsweep
• STEM: TranzX | B:31.8mm | 6°
• SADDLE: Devinci
• SEATPOST: TranzX Dropper 31.6mm 1xLever
• GRIPS: Velo Ergo Comfort

Brakes

• FRONT BRAKE: Shimano Deore M4100/MT410 | 2 Pistons
• REAR BRAKE: Shimano Deore M4100/MT410 | 2 Pistons
• ROTORS: Shimano RT66 | 180mm

Drivetrain

• REAR DERAILLEUR: Shimano Deore M4120 | 10/11s
• REAR SHIFTER: Shimano Deore M5100 | 11s
• CRANKARM: Shimano M8150
• CHAINRING: Shimano E-BIKE SYSTEMS CRET600 | 38T Single chain guard
• CASSETTE: Shimano SLX 11s 11-40T
• CHAIN: Shimano HG601 | 11s

Wheels

• FRONT RIM: V2 Comp 700c | 23mm inner
• REAR HUB: Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG
• REAR RIM: V2 Comp 700c | 23mm inner
• SPOKES: Stainless 14G
• FRONT TIRE: Kenda KwickNine | 29x2.2 | KS
• REAR TIRE: Kenda KwickNine | 29x2.2 | KS

E-System

• COMPUTER: Shimano E-BIKE SYSTEMS EN610
• DRIVE UNIT: Shimano E-BIKE SYSTEMS EP801 | 250W | 85Nm
• BATTERY: BMZ Gen2 725Wh

Accessories

• PEDALS: Wellgo C211DU
• FRONT FENDER: Sunny Wheel
• REAR FENDER: Sunny Wheel
• KICKSTAND:Kickstand Devinci Black
