MOTOR
The Shimano EP6 motor is designed for optimal power, maximum distance and fun. It's extremely lightweight at only 2.88kg and incredibly durable in all weather conditions thanks to its moulded protector.
Devinci
View full details

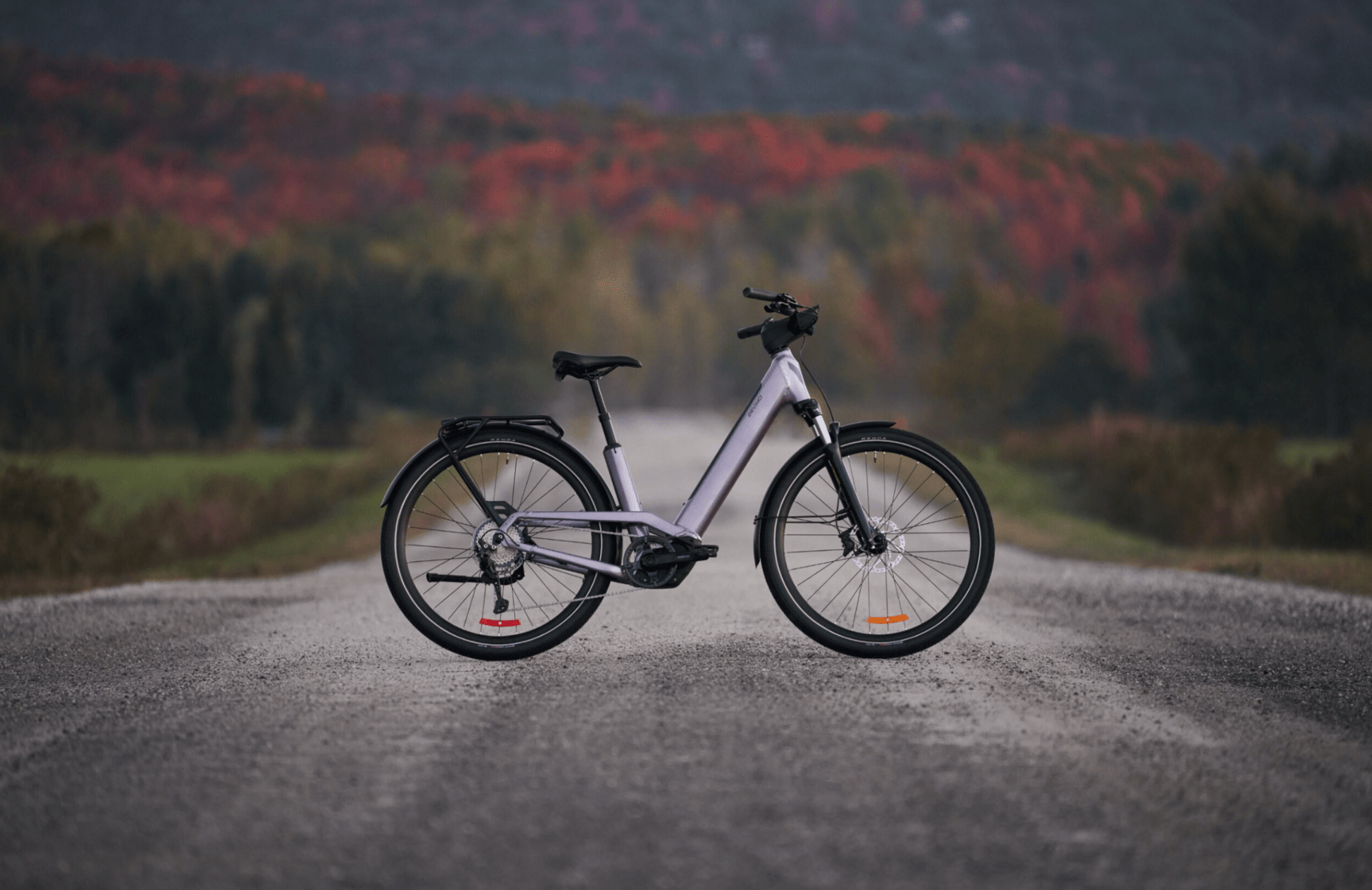

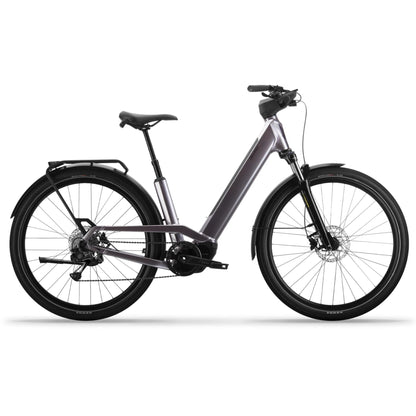

Devinci E-Griffin EP6 9s E Bike
Devinci E-Griffin EP6 9s E Bike
Regular price
$3,369.00
Sale price
$3,369.00
Regular price
$4,698.99
Unit price
per
28% Off
Couldn't load pickup availability
Devinci E-Griffin EP6 9s E Bike
Specs
Specs
THE E-BIKE SIMPLICITY
The E-Griffin takes the guesswork out of city and leisure biking. It's built around a powerful Shimano Steps motor for reliable power on demand. From the integrated handlebar display to the powerful hydraulic brakes, suspension fork and step-thru frame, it's tailored to the needs and style of riding style. So you can ride often, with confidence.
Jump to Specs → Jump to Features →
INTEGRATED COCKPIT
Protects cables and electronics from the elements in a clean design. The smooth internal cable lines also provide better shifting over time compared to other integrated systems.
BATTERY
Ultra long-lasting 540 Wh battery uses the latest 21700 cell technology. It holds 30% more energy and delivers optimal performance in all weather conditions.
INTEGRATED LIGHTS
Safety on the road comes standard, so you can enjoy the ride, day or night.
FRONT SUSPENSION AND DROPPER SEATPOST
80 mm of suspension for added comfort and control, even at full speed. A dropper seatpost lets you easily put your feet on the ground when you stop.
HYDRAULIC DISC BRAKES
All weather performance.
WIDE TIRE CLEARANCE
Large volume tires will get you where you’re going with added comfort and control. Frame fits up to 29 x 2.4" tires.
INTEGRATED ACCESSORIES
Everything you need for a seamless ride comes standard. Hit the road with fenders, rear rack and a solid e-bike kickstand for when you’re not riding.
INTEGRATED TROUSER GUARD
The lower position of the seat stay function as a chain guard and prevents your pants rubbing on the chain..
SPECS
| FRAME | Aluminum Optimum S03 |
| FORK | Suntour NVX30 NLO | 80mm PM direct 160mm |
| HEADSET | FSA Custom |
| SEAT CLAMP | Alloy CNC | 34.9mm |
| HANDLEBAR | V2 Comp | 640mm | 48mm rise | 40° backsweep |
| STEM | TranzX I-Alloy | B:31.8mm | 70mm | 7° |
| SADDLE | Devinci |
| SEATPOST | TranzX Dropper 31.6mm 1xLever |
| GRIPS | Velo Ergo Comfort |
Brakes
- FRONT BRAKE - Shimano MT201/MT200 | 2 Pistons
- REAR BRAKE - Shimano MT-201
- ROTORS - Shimano RT26 | 180mm
- REAR DERAILLEUR - Shimano Cues U4000 | 9s
- REAR SHIFTER - Shimano Cues U4000 | 9s
- CRANKARM - Shimano STEPS EM600
- CHAINRING - Shimano STEPS CRET600 | 38T Single chain guard
- CASSETTE - Shimano Cues 9s 11-41T
- CHAIN - Shimano LG500 | 9/10/11s
- FRONT RIM - V2 Comp | 23mm inner
- FRONT HUB - Formula Disc sealed
- REAR HUB - Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG
- SPOKES - Stainless 14G
- FRONT TIRE - Kenda KwickNine | 29x2.2 | KS
- REAR TIRE - Kenda KwickNine | 29x2.2 | KS
E-System
- COMPUTER - Shimano STEPS EN610
- DRIVE UNIT - Shimano STEPS EP600 | 250W | 85Nm
- BATTERY - BMZ Gen2 540Wh
