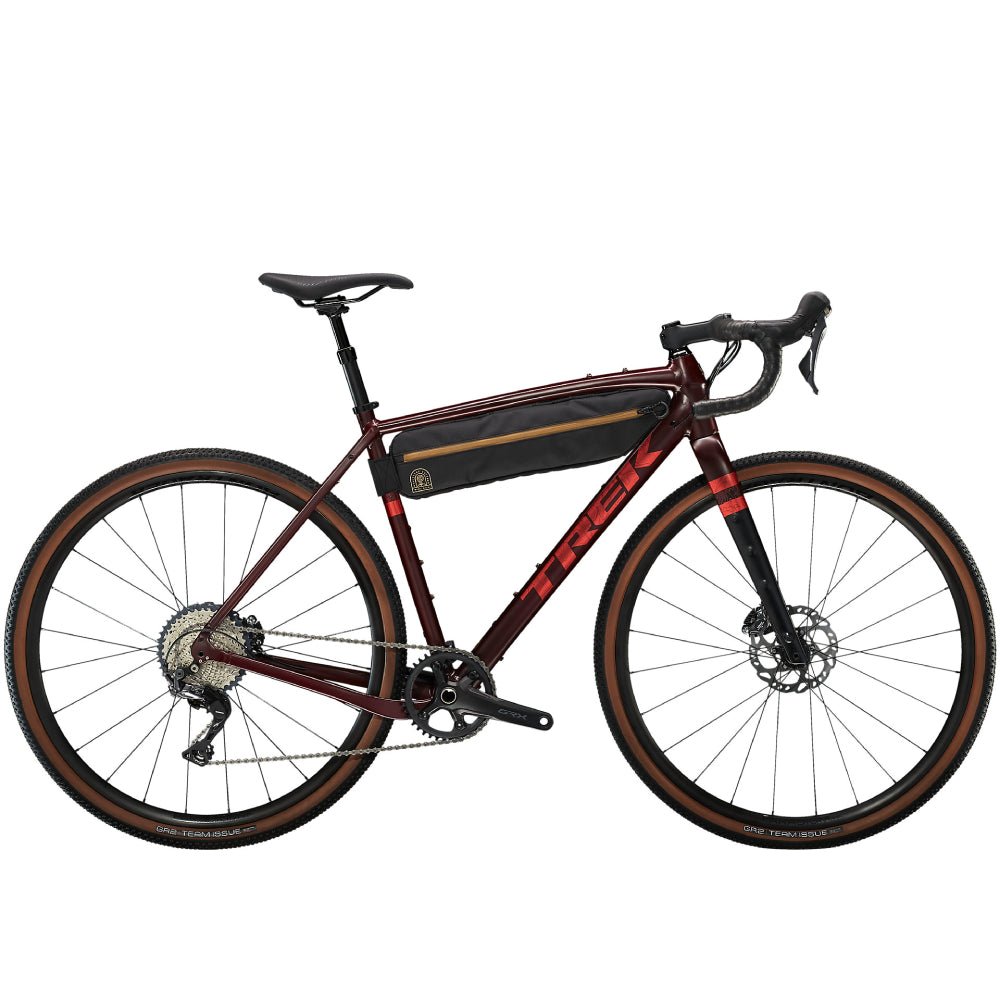

Trek Checkpoint ALR 5 Driftless Bike

Trek Checkpoint ALR 5 Driftless Bike

$2,799.00
$2,799.00 $3,599.99
22% Off
See Reviews
Finance this! Learn More

Color: Blood Red
Size: 52

Questions? Call us 877-352-7547
Monday-Saturday 11am-6pm

Best Price Guaranteed

60 Day Returns

In Store Pickup Only
View full details

Featured Men's Bike Helmets

1 4
View all

Trek Checkpoint ALR 5 Driftless Bike

Specs

The embodiment of off-road exploration.

Checkpoint ALR 5 Driftless is a custom-painted, high-quality gravel bike that will hold up for long, rugged miles on pavement, dirt, and even the most treacherous gravel roads. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customize for your kind of adventure.

Confidently take on bigger, better adventures.

  • Integrated frame bag mounts and rack and fender mounts make it easy to carry gear and water.

SPECS

FRAMESET
Frame 300 Series Alpha Aluminium
tapered head tube
Internal cable routing
3S chain keeper, T47 BB
rack and mudguard mounts
integrated frame bag mounts
flat-mount disc
142x12 mm thru-axle
Fork Checkpoint
full carbon
tapered carbon steerer
rack mounts
fender mounts
flat mount disc
12x100mm thru axle
Frame Fit Gravel
WHEELS
Hub Front Bontrager alloy
sealed bearing
CenterLock disc
100x12 mm thru axle
Skewer Front Bontrager Switch thru axle
removable lever
Hub Rear Bontrager alloy
sealed bearing
CenterLock disc
Shimano 11-speed freehub
142x12 mm thru axle
Skewer Rear Bontrager Switch thru axle
removable lever
Rims Bontrager Paradigm SL
Tubeless Ready, 24-hole
21 mm width
Presta valve
Spokes 14 g stainless steel
Tire Bontrager GR2 Team Issue
Tubeless Ready
Inner Strength casing
aramid bead
120 tpi
700x40c
Tire part Bontrager TLR sealant
180 ml/6 oz
Rim strip Bontrager Aeolus XXX rim strip
Max tire size 700x45c / 650x2.1" Bontrager tires
DRIVETRAIN
Shifter Shimano GRX RX810, 11 speed
Shimano GRX RX810 hydraulic disc
Rear derailleur Shimano GRX RX812
long cage
42T max cog
Crank Shimano GRX RX600
40T ring (size 52, 58, 61)
40T (size 49, 54, 56)
Bottom bracket Praxis
T47 threaded
internal bearing
Cassette Shimano SLX M7000
11-42
11 speed
Chain Shimano HG601
Max chainring size 1x: 44T SRAM or 50T Shimano
2x: 50/34
COMPONENTS
Saddle Bontrager P3 Verse Comp
steel rails
Seatpost Easton EA70 AX
27.2mm
0mm offset
50mm travel
Handlebar Bontrager Elite Gravel
Handlebar tape Bontrager Supertack Perf tape
Stem Bontrager Elite
31.8 mm
Blendr-compatible
7-degree,
Headset FSA Integrated
sealed cartridge bearing
1-1/8" top
1.5" bottom
Brake Shimano RX810 hydraulic disc
flat mount
Brake rotor Shimano RT70
centerlock
160mm
Rotor size Max brake rotor sizes: 160mm front & rear
ACCESSORIES
Bag Adventure Boss frame bag
Weight 56 - 9.60 kg / 21.17 lbs (excluding bag)
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

TECHNOLOGY

Progressive Geometry

A stout aluminum frame with an exclusive custom paint scheme, progressive geometry that's stable at speed and efficient when you're grinding up a climb. All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents

Won’t get in the way of fun

Hidden cables that won't interfere with bags, plus rack, integrated frame bag mounts and rack and fender mounts make it easy to carry gear and water.

A wealth of features

A 1x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, and wide 700x40c gravel tires for added stability and traction. Fits tires up to 45c wide.
