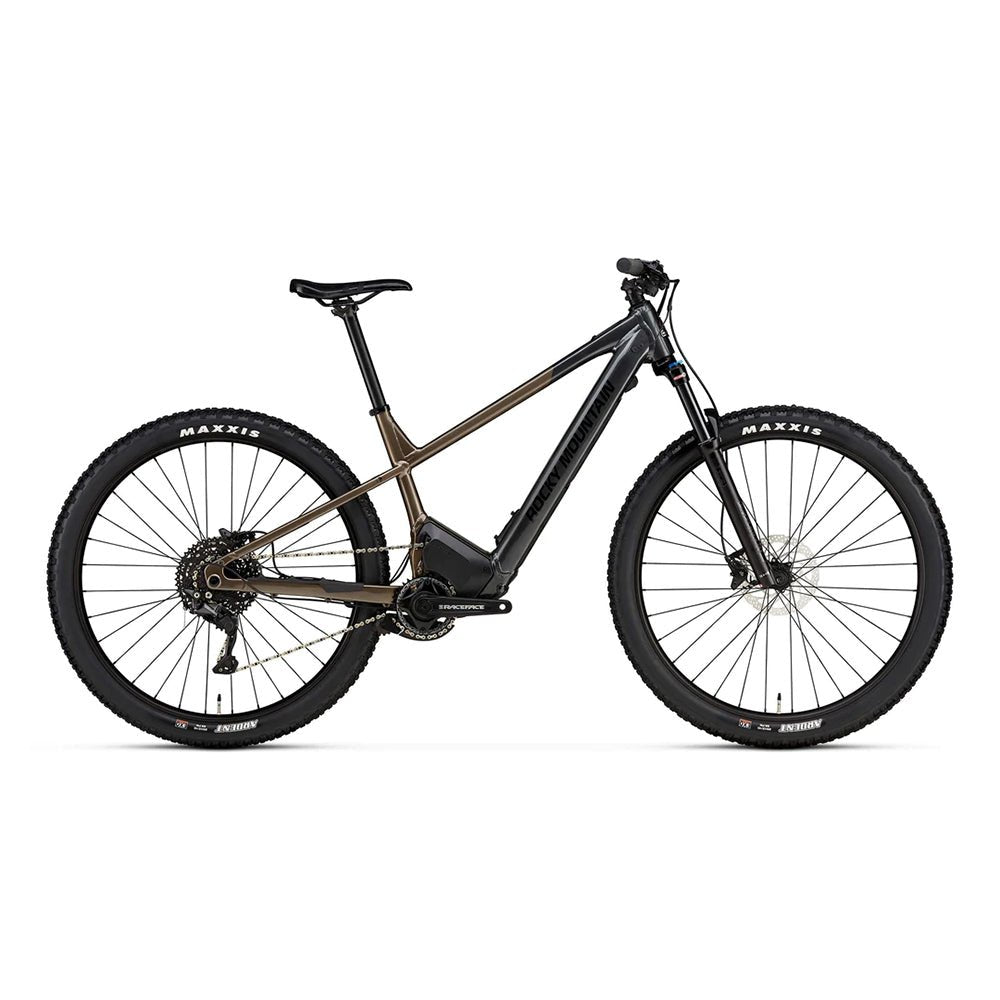

Rocky Mountain Fusion Powerplay 10 E Bike
Rocky Mountain Fusion Powerplay 10 E Bike
Regular price
$3,499.00
Sale price
$3,499.00
Regular price
$4,999.99
Unit price
per
30% Off
Couldn't load pickup availability
| Weight | 24.3 kg |
Rocky Mountain Fusion Powerplay 10 E Bike
Specs
Specs
The Powerplay lineup continuously impresses.
By combining the power of our Dyname™ 4.0 drive system and the all around user friendliness of the Fusion, the Fusion Powerplay opens up a new world of exploration, from trails to the city. Stability, comfort, safety and ease of use are the names of the game here.
DESIGN FREEDOM IN ACTION
-
We built the drive to fit the bike, not the other way around. Powerplay frames are not handcuffed to off-the-shelf drives. We put pivots where we want. We maximize our freedom in suspension design. We don’t start with no-fly zones as a result of 3rd party integration. Rocky Mountain’s engineering team enjoys a blank slate which ensures we can imagine, create, and most importantly, ride the bike we want.
SPECS
| Frame | FORM™ Alloy
Press Fit BB Internal Cable Routing Boost 148mm Tapered Zerostack Headtube Dropper Post Compatible. Rear Triangle |
| Fork | Suntour XCR32 AIR LOR DS Boost 29 = 120mm 46mm Offset
27.5 = 100mm 42mm Offset |
| Front Travel | 120 |
| Headset | FSA Orbit NO.57E
Sealed 36°x45° Bearings 30.2mm x 41mm x 7.1mm Upper 40mm x 51.8mm x 7.5mm Lower 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 XC
7° Rise All Sizes = 50mm |
| Handlebar | Rocky Mountain XC
760mm Width 25mm Rise 9° Backsweep 5° Upsweep 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Shimano MT4100 2 Piston
Resin Pads F:Shimano RT30 180mm | R:Shimano RT30 180mm |
| Shifters | Shimano Deore 10spd |
| Rear Derailleur | Shimano Deore 10spd |
| Cranks & Chainring | Race Face Ride Cinch 34T
24mm Spindle Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Bottom Bracket | Shimano SM-BBMT500 |
| Cassette | Sunrace CSMS2 11-46T |
| Chain | KMC X10-1 |
| Front Hub | Shimano MT410
15mm Boost |
| Rear Hub | Shimano MT400 Boost 148mm |
| Spokes | 2.0 Stainless |
| Rims | Rocky Mountain TR30 Tubeless
32H Tubeless Compatible - Tape / Valves / Sealant Not Included |
| Tires | F: Maxxis Ardent 2.4 EXO
R: Maxxis Ardent 2.4 EXO |
| Seatpost | Rocky Mountain 30.9mm |
| Saddle | WTB Volt 142 |
| Drive System | Dyname 4.0 Mountain Bike Drive
250w Nominal Power 108Nm Rocky Mountain Micro Remote Low RPM - High Efficiency class 1 eMTB System Designed in Canada |
| Battery | 480 Wh Removable Integrated Li-Ion
100% Charged in 2:35 (4A) / 5:05 (2A) 80% Charged in 1:55 (4A) / 4:00 (2A) |
| Remote | Rocky Mountain Micro Remote |
| Display | Rocky Mountain Jumbotron
Drive System Customization Battery & Assist Level Trip Speed Cadence Top Tube Integration |
| Charger | Rocky Mountain Powerplay Charger
2A 48V Higo Deep Socket Connector Overtimepack Compatible (Dyname 4) |
TECHNOLOGY
More power on tap
Virtual quads kick in when you need them and stand down when you don’t. Seamless power modulation between drive and human. Dyname reads your rhythm and responds to your ride.
No whining
The Dyname 4.0 features a reduced motor rpm that lowers the amount of the high frequency gear whine commonly found with other systems.
Ride farther
We’ve increased the capacity of the Powerplay battery to a whopping 720Wh, allowing you to spend more time riding.
